Built for Safety, Speed, and Reliable Performance

Briggs & Stratton brings decades of power generation expertise to home energy storage with the SimpliPHI® 6.6 battery system. This lithium ferro phosphate (LFP) battery delivers the safety, reliability, and performance homeowners need for backup power, solar storage, and daily energy cost savings.

Designed for professional installers and serious homeowners, the SimpliPHI® 6.6 system eliminates the complexity and safety concerns of traditional energy storage. The integrated Battery Management System (BMS), RapidStak™ connectors, and advanced safety features ensure safe, efficient operation throughout the system's life. Whether you need a single 6.65 kWh unit for essential backup or a multi-stack system delivering up to 119.7 kWh, the SimpliPHI® 6.6 scales to meet any residential or light commercial energy requirement.

Briggs & Stratton Home Energy Storage
51.2
DC Voltage
119.7
kWh Max Capacity
≥96%
Max Round Trip Efficiency
IP65
Weather Rating
Briggs & Stratton SimpliPHI 6.6 Battery System

SimpliPHI® 6.6 Battery System

The SimpliPHI 6.6 Battery delivers 6.65 kWh of energy storage with installation in under 5 minutes. Featuring RapidStak™ connectors that eliminate wiring complexity, this IP65-rated system can be stacked up to 18 units for 119.7 kWh of total capacity. Built for both indoor and outdoor installations with no cabinets required.

SimpliPHI 6.6 Product Info Page

Faster Installations

Our unique RapidStak connector includes all communications and power in one connection. Assemble a stack of 3 in under 5 minutes.

Wire and Hassle Free

No wires, no DIP switches, no complications. Installation requires fewer tools and accessories, and less cost.

Scalable for Any Application

Each battery delivers 6.65 kWh. Stack 3 for 19.95 kWh in a compact footprint. Scale up to 6 stacks for 119.7 kWh of energy.

Versatile Installation Options

IP65 rating supports all weather conditions for both indoor or outdoor installations. No cabinets needed. Ground or wall mount.

Choose Your Inverter

Designed to integrate with SimpliPHI®, Sol-Ark® and other leading inverters, offering ultimate flexibility and faster commissioning.

Designed for Versatility

Use for back-up power, time-of-use utility savings, solar+storage, or off-grid power.

SimpliPHI® 6.6 Technical Specifications

Complete technical details for professional installations

General Specifications

Nominal Voltage 51.2 VDC Voltage Range 44.8 - 56.8 VDC
Capacity (Ah) 130 Ah Capacity (kWh) 6.656 kWh
Continuous Discharge 130 ADC Continuous Charge 100 ADC
Surge Current 240 ADC (2s) Efficiency ≥96%
Operating Temp -20°C to 55°C Charging Temp -10°C to 50°C
Cycle Life 4,500 Cycles (100% DOD) Weight 125 lbs (56.7 kg)
Dimensions 28.6" × 17.3" × 6.7" IP Rating IP65 (when installed)

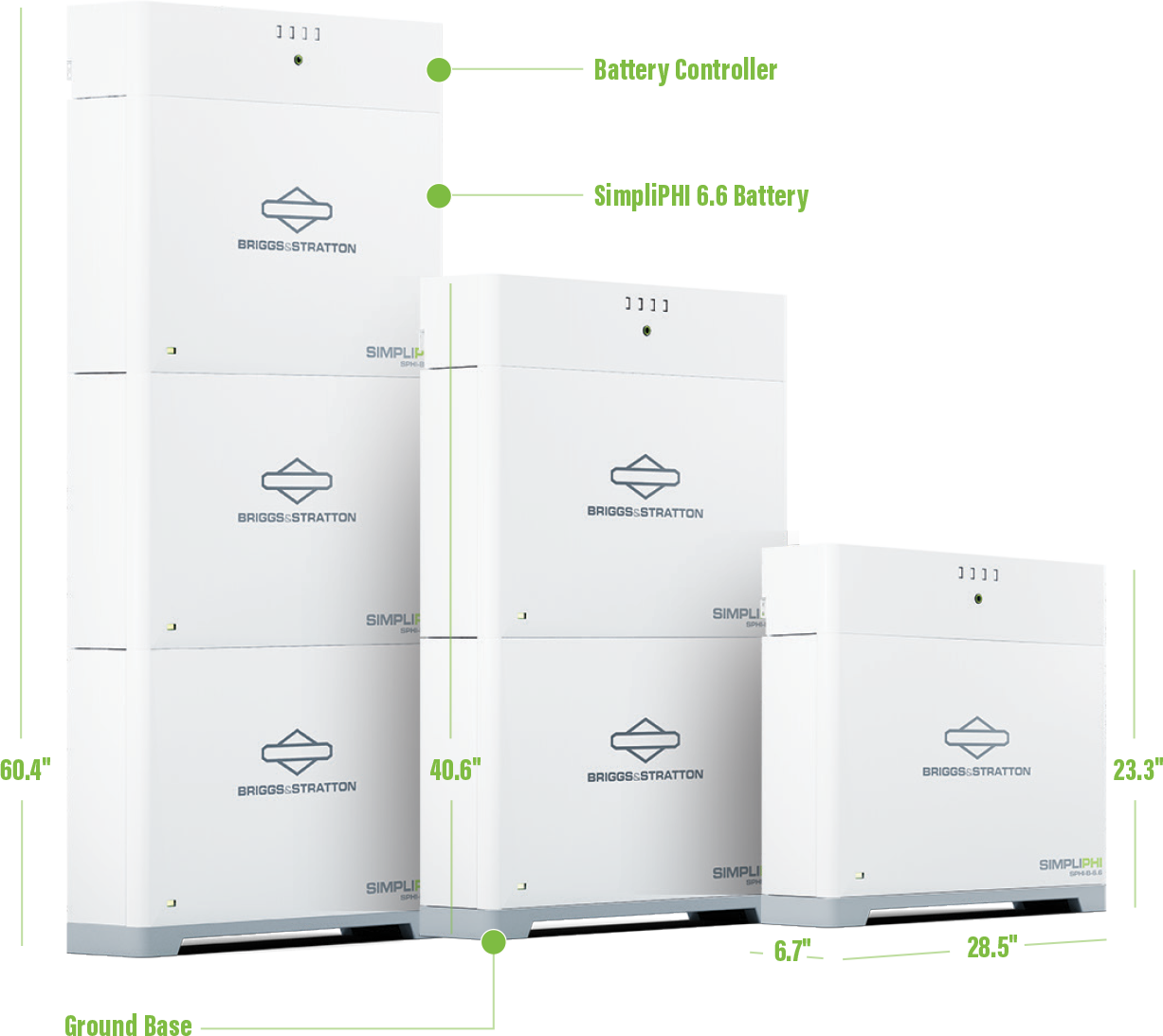

Battery Module Stacked Configurations

Configuration

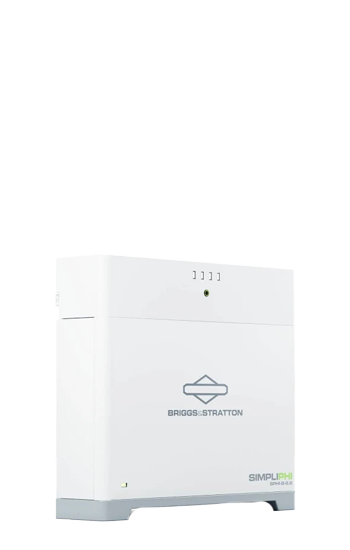

Single Unit Configuration
Single Unit

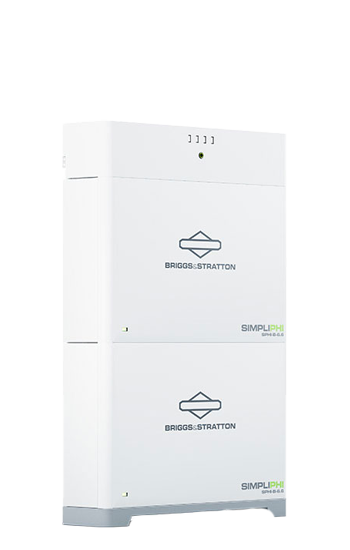

2-Stack Configuration
2-Stack

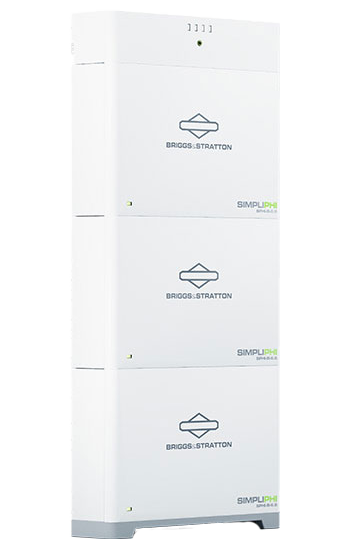

3-Stack Configuration
3-Stack
Total Capacity 6.65 kWh 13.3 kWh 19.95 kWh
Charge Power 3.33 kW 6.66 kW 9.98 kW
Discharge Power 6.66 kW 10.65 kW 13.98 kW
Surge Power (10s) 8.3 kW 13.3 kW 17.5 kW
Discharge Current 130 ADC 208 ADC 273 ADC
Maximum System Configuration: Up to 18 units (6 stacks of 3) for 119.7 kWh total capacity

Safety Certifications

UL 9540 • UL 9540A • UL 1973 • UL 1998 • UN 38.3 • UN 3480 • IEC62619

SimpliPHI® 6.6 Accessories

Complete your SimpliPHI® 6.6 system with these essential accessories

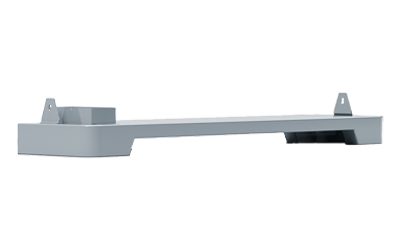

SimpliPHI 6.6 Floor Mount Base

SimpliPHI 6.6 Floor Mount Base

Secure floor mounting solution designed specifically for the SimpliPHI 6.6 battery system. One floor mount base required per battery system for stable ground installation.

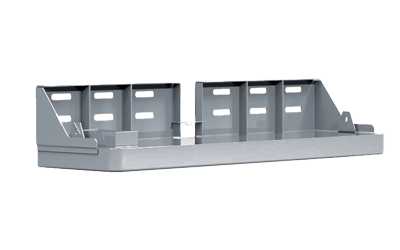

SimpliPHI 6.6 Wall Mount Base

SimpliPHI 6.6 Wall Mount Base

Space-saving wall mounting solution for the SimpliPHI 6.6 battery system. One wall mount base required per battery system for secure vertical installation.

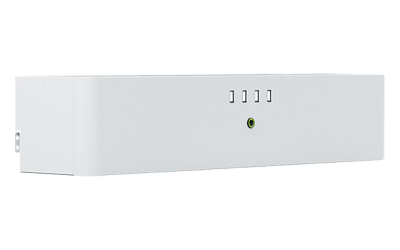

SimpliPHI Battery Controller

SimpliPHI Battery Controller

Essential battery management controller with 10-year warranty. One battery controller required per SimpliPHI 6.6 system for optimal performance and monitoring.
