Unlock True Energy Independence with EcoFlow OCEAN Pro
With 24kW continuous output, 205A surge capability, and 40kW solar intake, this system delivers whole-home backup, multi-source charging options, and reliable energy security around the clock.

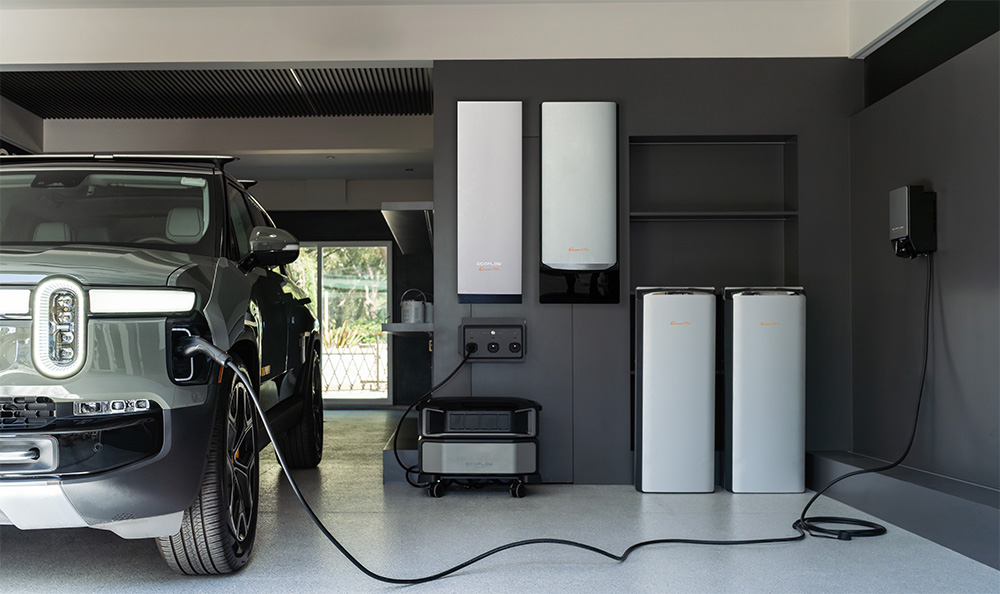

All-in-One Solar Battery Ecosystem for Residential Energy Storage
AI-powered energy storage system integrating solar, grid, and generator sources for residential applications. Features 24kW continuous output with 205A LRA surge capability and expandable battery capacity from 10kWh to 80kWh. Supports direct connection to portable generators and EcoFlow power stations for extended backup duration.
40kW solar input capacity for maximum energy capture
24kW continuous power output with 205A LRA start capability
Expandable storage from 10kWh to 80kWh
Multi-source integration with solar, grid, and generators
AI energy optimization with usage learning and rate tracking
Engineered for Reliable Operation
From multi-source power integration to AI optimization and mobile control, EcoFlow OCEAN Pro provides reliable backup and energy management for your home.

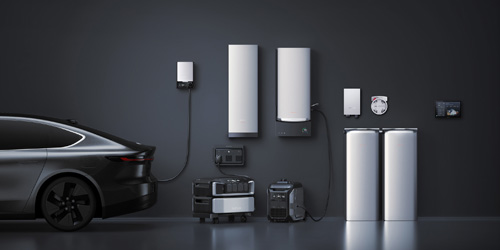

Multi-Source Flexibility
Direct connection to portable generators and EcoFlow power stations extends backup capability without additional installation.

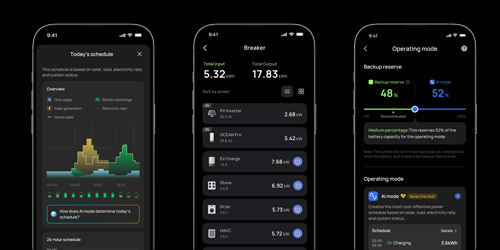

Mobile System Management
Monitor energy flow, adjust settings, manage appliances, shift usage, and reduce bills and track performance through the EcoFlow app.
Whole Home Capability
24kW continuous output powers multiple HVAC systems, EV chargers, and major appliances simultaneously.

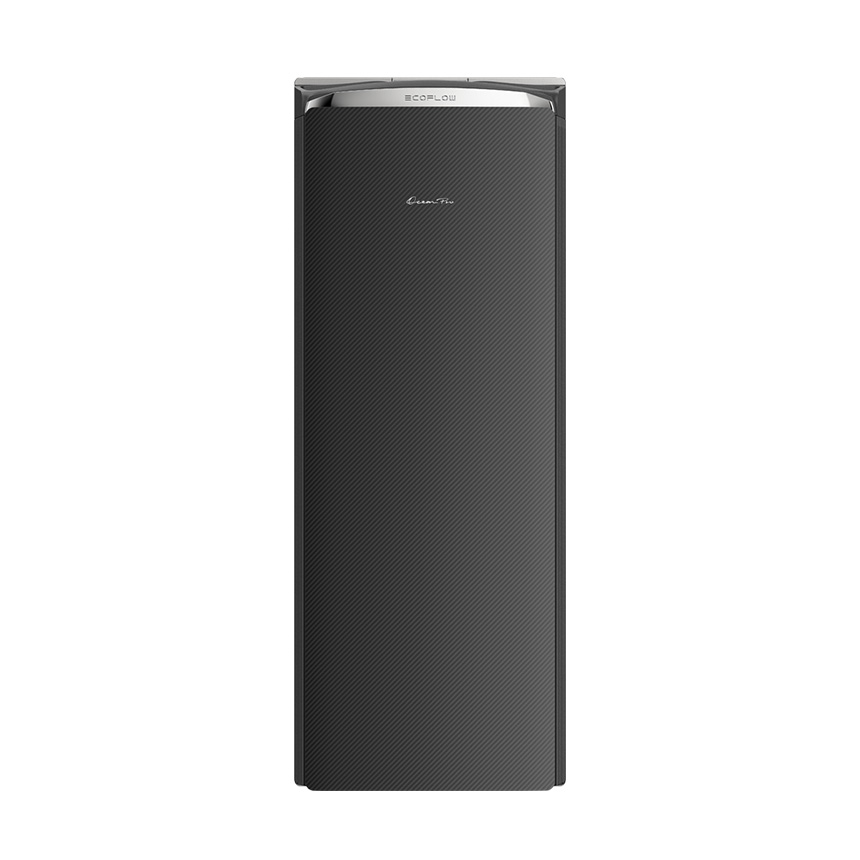

EcoFlow OCEAN Pro LFP Battery
10kWh modular storage units stack up to 80kWh per inverter for scalable whole-home backup
Lithium iron phosphate battery providing 10kWh of storage capacity with IP67 waterproofing and UL 9540A/B fire safety compliance. Up to 8 units can be connected to a single OCEAN Pro inverter for 80kWh total system capacity. Features integrated fire suppression, thermal management, and 10kW continuous discharge capability. Available finishes include Premium Walnut Wood, Performance-Grade Carbon Fiber (shown above), and Aerospace-Grade Aluminum.
Stack up to 8 battery units per inverter to scale from 10kWh to 80kWh total capacity for extended backup duration.
IP67 Waterproof Rating
Operates in up to 2.6 feet of water with complete protection against dust, rain, and outdoor exposure conditions.

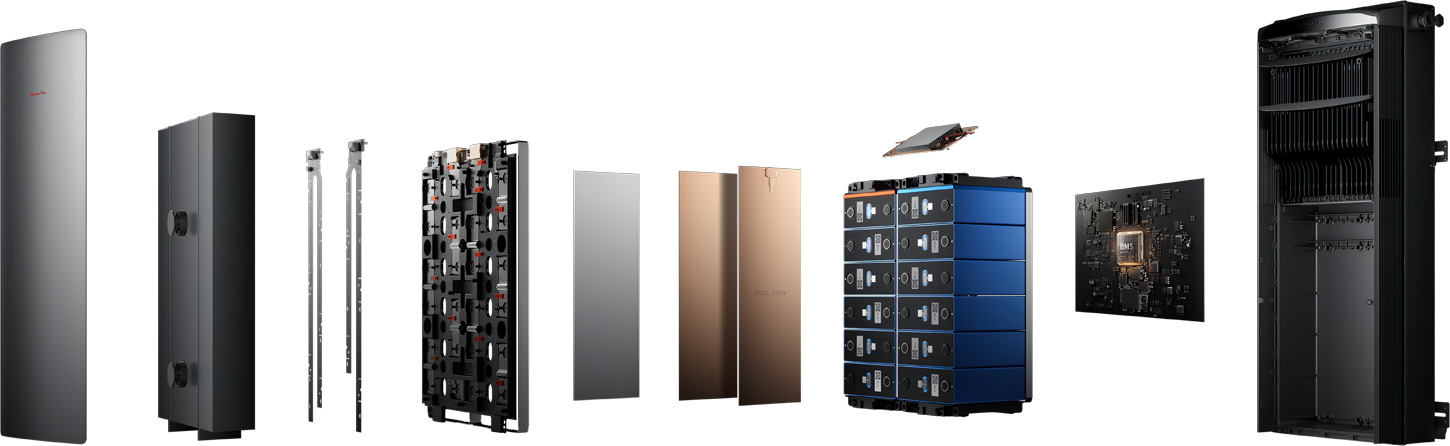

Integrated Fire Protection
Built-in fire suppression and thermal management systems meet UL 9540A and UL 9540B safety requirements for residential installation.
EcoFlow OCEAN Pro Battery Specifications
Specification
Value
Model Number
EF-BP-10
Battery Chemistry
Lithium Iron Phosphate (LFP)
Nominal Energy
10 kWh
Rated Voltage
400V DC
Max Continuous Discharge
10 kW
System Scalability
Up to 8 units (80 kWh) per inverter
Operating Temperature
-4°F to 140°F (-20°C to 60°C)
Enclosure Rating
NEMA 3R
IP Rating
IP67 (Battery & Power Electronics)
Dimensions (H×W×D)
45.3 × 17.3 × 10.8 in (1150 × 439 × 274 mm)
Weight
245.8 lbs (111.5 kg)
Certifications
UL 9540, UL 9540A, UL 9540B, UL 1973, UN 38.3

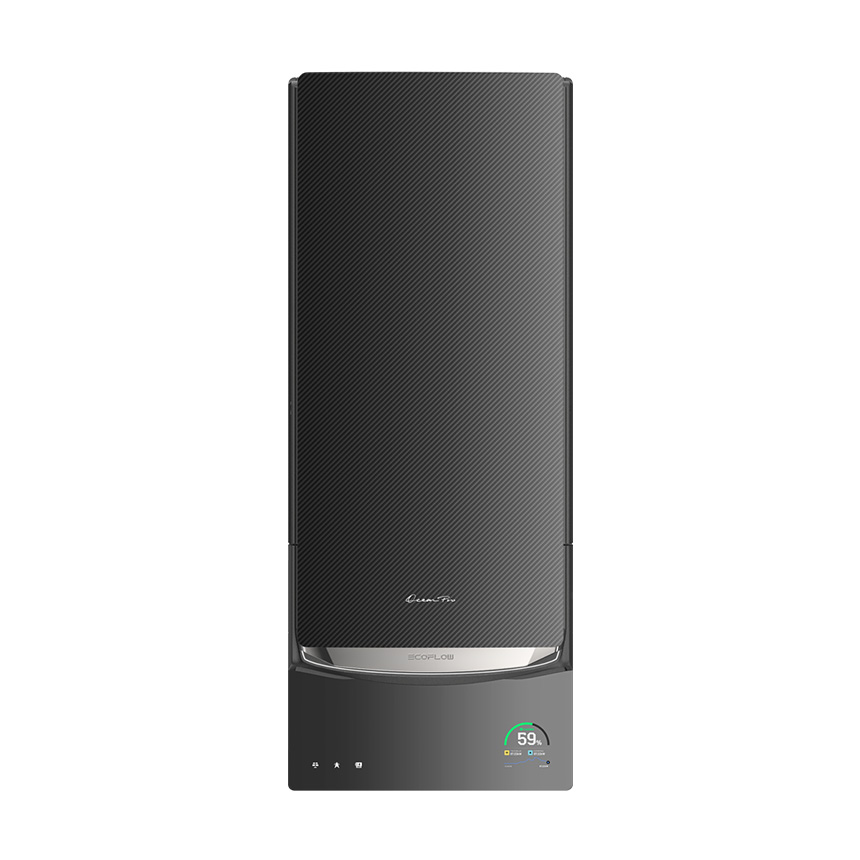

EcoFlow OCEAN Pro Hybrid Inverter
24kW continuous output with 40kW solar input capacity and 205A LRA surge capability
This multi-functional hybrid inverter features 8 independent MPPT channels (5kW each) with 60-550V DC input range for maximum solar harvest. Integrated Inlet Box accepts portable generators, power stations, and V2L-enabled electric vehicles for extended backup capability. Supports AC and DC coupling with system scalability up to 48kW (2 units) and 80kWh battery capacity. Available finishes include Premium Walnut Wood, Performance-Grade Carbon Fiber (shown above), and Aerospace-Grade Aluminum.
8 independent MPPT channels with 5kW capacity each maximize energy capture from large or complex solar arrays.
205A LRA Surge Power
Handles high inrush currents for starting multiple HVAC systems, pool pumps, and heavy-duty appliances without interruption.
Built-In Inlet Box
Direct connection for portable generators, EcoFlow power stations, and V2L-enabled EVs extends backup capability without additional equipment.
EcoFlow OCEAN Pro Inverter Specifications
Specification
Value
Model Number
EF-PCS-24
Nominal Output Power
11.5kW / 24.0kW
Maximum Solar Input
40kW (8 MPPTs × 5kW each)
PV Input Voltage Range
60 – 550V DC
Max Continuous Output
48A / 100A AC
Load Start Capability
205A LRA (1 second)
Solar to Grid Efficiency
97.5%
Battery Compatibility
Up to 8 OCEAN Pro Batteries (80kWh)
Power Scalability
Up to 2 inverters (48kW total)
Grid Voltage
120/240V split phase, 60Hz
Connectivity
BLE, Wi-Fi (2.4GHz), Ethernet, Cellular (LTE/4G)
Warranty
15 years manufacturer warranty

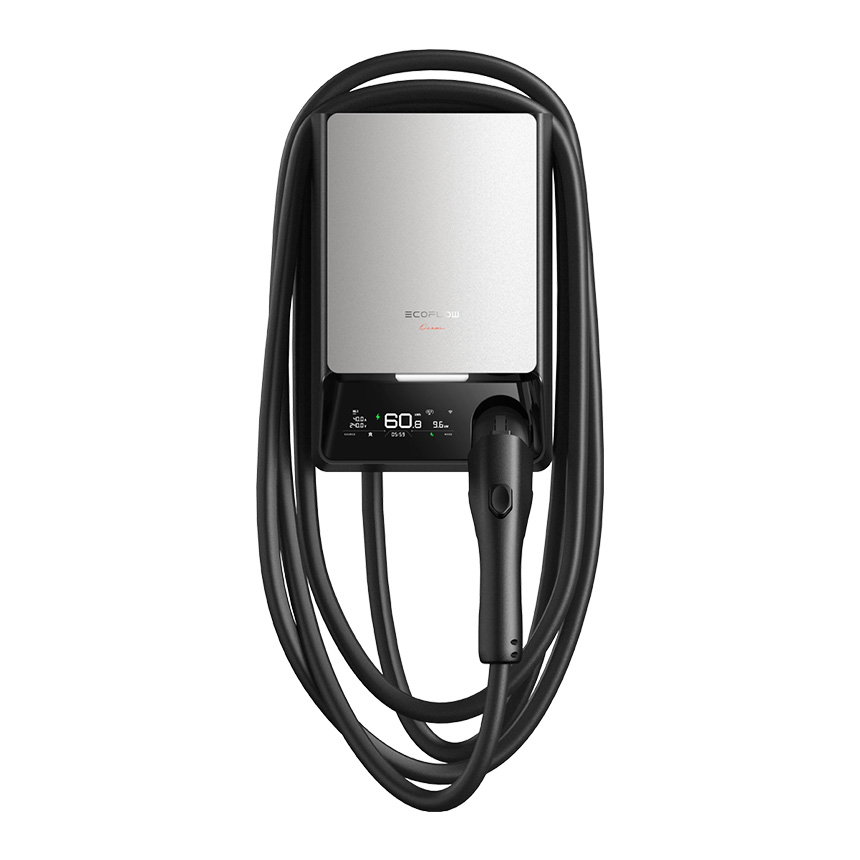

EcoFlow OCEAN EV Charger
11.5kW solar-optimized EV charging with AI scheduling and dynamic rate management
Integrated EV charging solution designed exclusively for EcoFlow OCEAN Pro systems. Delivers 11.5kW (48A) output through SAE J1772 connector, adding up to 46 miles of range per hour. AI-powered scheduling coordinates solar storage, grid rates, and departure times to minimize charging costs. Features multiple charging modes including Fast Charge, Scheduled Charge, and Smart Charge for optimized energy usage. 25-foot charging cable with NEMA Type 4 outdoor rating supports installation flexibility.
Store surplus solar energy during the day and use it for overnight EV charging, reducing grid dependence and charging costs.
AI Charge Optimization
Set departure time or charging goal and let AI coordinate dynamic pricing, solar storage, and scheduling for lowest-cost charging.
46 Miles Per Hour
11.5kW output delivers up to 46 miles of driving range per hour with SAE J1772 compatibility for most EVs. (according to EcoFlow’s laboratory testing)
EcoFlow OCEAN EV Charger Specifications
Specification
Value
Charge Power
11.5 kW (configurable)
Rated Current
48A (configurable)
Rated Voltage
208/240 VAC
Connector Type
SAE J1772
Charging Cable Length
25 ft (7.5 m)
Charging Modes
Fast Charge, Scheduled, Customized, Smart Charge
Communication
Wi-Fi (2.4GHz), Bluetooth, RS485, CAN
Operating Temperature
-22°F to 122°F (-30°C to 50°C)
Enclosure Rating
NEMA Type 4, IK10
Dimensions (W×H×D)
13.8 × 8.89 × 5.55 in (335 × 226 × 141 mm)
Weight
14.3 lbs (6.5 kg)
Warranty / Certifications
5 years / UL2594, UL2251, ENERGY STAR

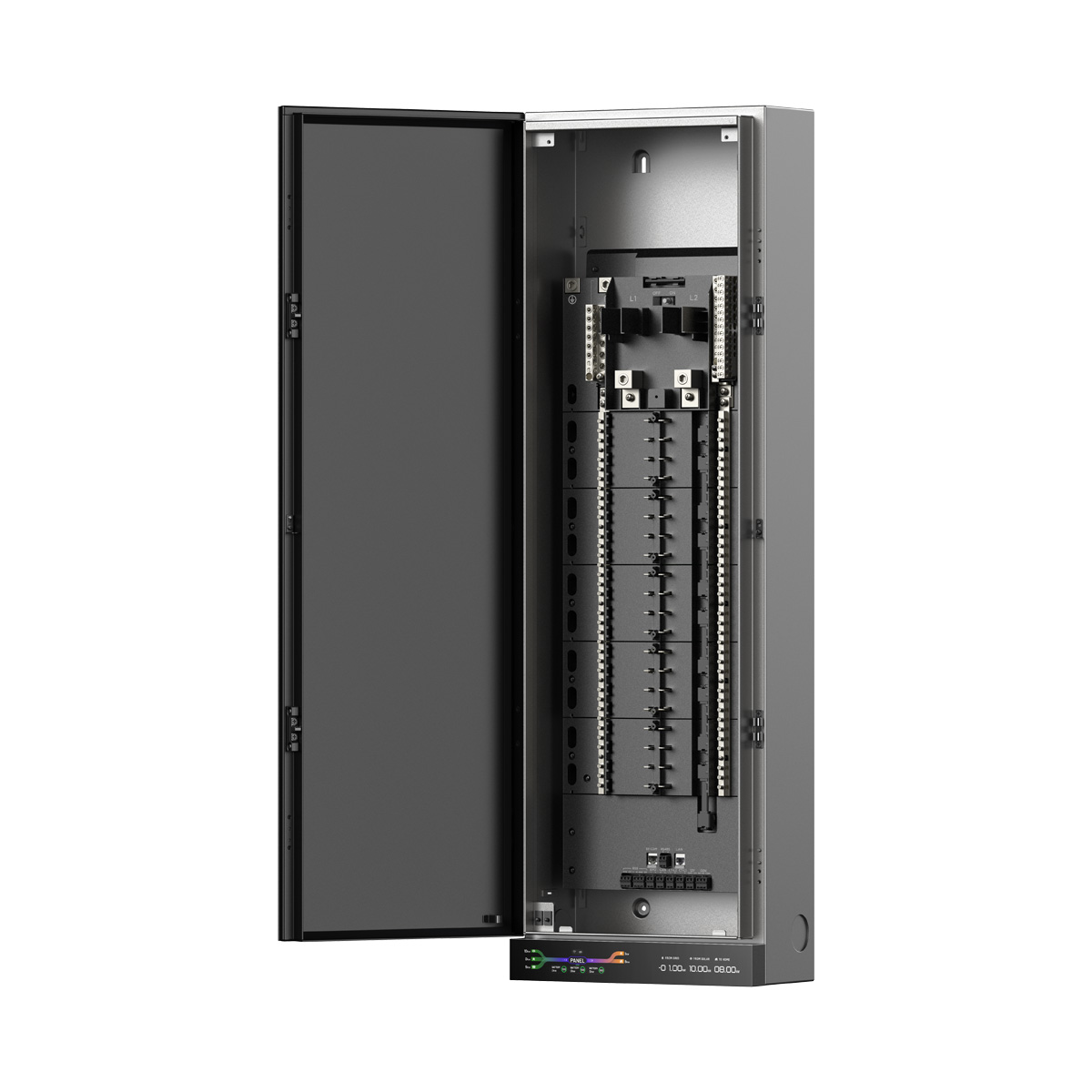

EcoFlow OCEAN Smart Electrical Panel 40
Replace your traditional 200A service panel with intelligent circuit-level control and backup management
Smart electrical load center with 40 intelligent circuits for comprehensive home energy management. Serves as main service panel with 200A OCPD rating and 160A continuous grid current capacity. Features automated backup switching with 10ms or less transfer time to OCEAN Pro battery system. Integrated generator management supports standby generators for extended backup duration. NEMA 3R rated for indoor or outdoor installation with flush or surface mounting options.
