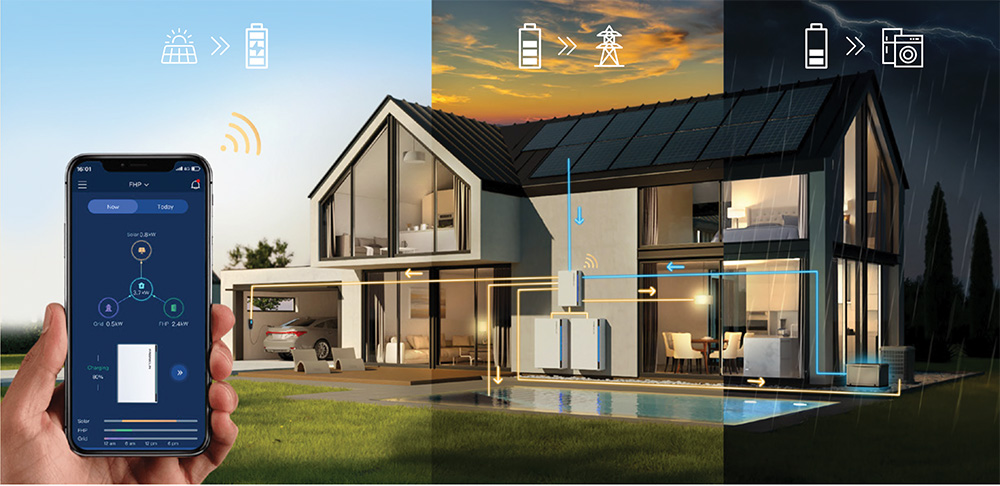

FranklinWH delivers a comprehensive home energy solution that seamlessly integrates solar power, battery storage, and intelligent management to maximize energy independence. Designed for whole-home backup capability, the FranklinWH system combines cutting-edge lithium iron phosphate battery technology with smart energy management to power your entire home during outages while optimizing daily energy usage to reduce utility bills.

The FranklinWH ecosystem consists of three core components: the aPower 2 battery for reliable energy storage, the aGate intelligent controller for precise energy management, and the aPbox for solar expansion. Together, these components create a scalable, resilient energy solution that adapts to your changing needs while providing uninterrupted power, even during extended grid outages. Whether you're looking to increase your energy independence, protect against power outages, or optimize your existing solar investment, FranklinWH offers a future-proof solution engineered for the modern home.

FranklinWH Complete Energy Ecosystem

Whole-Home Backup

Power your entire home including air conditioners and large appliances during outages

Scalable Solution

Scale up to 15 aPower 2 Battery units from 15kWh to 225kWh as your energy needs grow

Intelligent Management

Optimize energy usage and consumption to reduce bills with smart load control

Superior Warranty

Industry-leading protection and certification with up to 15 years coverage

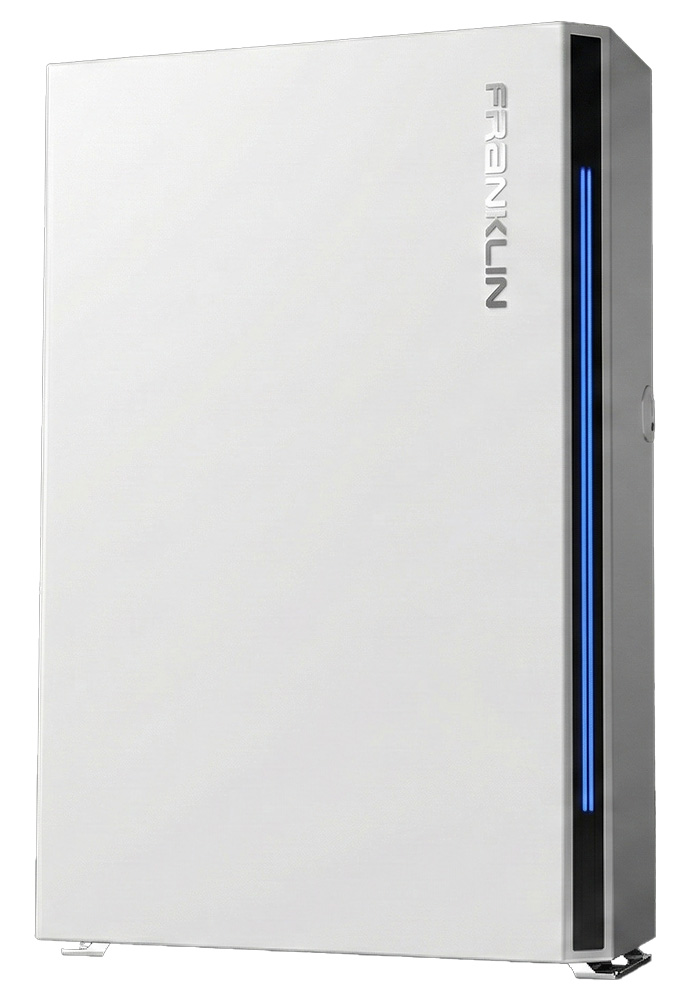

aPower 2 Lithium Battery

Whole Home Backup with a Single Battery

FranklinWH aPower 2 Lithium Battery

The aPower 2 is the cutting-edge second-generation home energy battery within the FranklinWH energy ecosystem, storing energy from solar, grid, generator, and EV. Boasting a massive 15 kWh capacity and a continuous output of 10 kW, this powerful LFP battery can run your entire home day and night or during outages, effectively powering air conditioners, heaters, and other high-demand appliances.

With an industry-leading 15-year warranty for 60 MWh throughput, the aPower 2 offers exceptional longevity and reliability. FranklinWH's adaptive energy storage solution can scale up to 15 aPower batteries per aGate controller for a robust 225 kWh system, ensuring your home's evolving energy needs are met without system overhauls.

Key Features

Uninterrupted Power

Delivers surge current powerful enough to start a 5-ton A/C while running essential home loads without tripping, ensuring smooth operation for high-demand appliances.

Climate Protected

Works reliably between -4°F and 131°F with natural cooling technology and IP67 weatherproofing, ensuring rock-solid reliability in harsh environments.

Enhanced Safety

Utilizes Lithium Iron Phosphate (LFP) battery technology with exceptional thermal stability, significantly reducing overheating risks even under extreme conditions.

Whisper Quiet Operation

Advanced natural cooling technology keeps sound levels at just 30 dBA, working efficiently in the background without disrupting your daily life.

Technical Specifications

Model Number APR-10K15V2-US
Usable System Energy 15 kWh AC per unit
Nominal Output Power (AC) 10 kW continuous / 15 kW peak for 10s
Real Power (charge) 8 kW continuous
Battery Chemistry Lithium Iron Phosphate (LFP)
Scalability Up to 15 units (225 kWh) per aGate
Dimensions (H × W × D) 45.2 in × 29.5 in × 11.8 in (1149 mm × 750 mm × 300 mm)
Weight 357 lb. (162 kg)
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Noise Emission 30 dB(A) Typical / 45 dB(A) Maximum
Certifications UL 9540, UL 9540A, UL 1973, UL 1741, UL1741 SB, UL 1741 PCS, UL 60730-1, IEEE 1547, IEEE 1547.1, UN 38.3, CSA C22.2 No. 107.1

aGate Intelligent Energy Management System

The Central Brain of Your Home Energy Ecosystem

FranklinWH aGate Energy Management System

The aGate serves as the intelligent control center for your entire home energy system, interconnecting solar, grid, batteries, and standby generators to optimize electricity usage. It seamlessly transitions between power sources, ensuring critical appliances like refrigerators and network routers remain operational during grid outages.

Backed by a 12-year warranty, the aGate features a robust 280A busbar that eliminates the need for expensive main panel upgrades in most homes. The system can be installed at the service entrance, connected to the main load center, or used as a load center itself, providing flexible installation options for any home configuration.

Key Features

Intelligent Controller

Expertly manages various power sources to optimize energy efficiency, automatically transitioning between grid power and backup sources during outages for uninterrupted power.

Universal Inverter Compatibility

Easily integrates with existing solar systems from all major inverter manufacturers, making retrofit installations simple without requiring complete system overhauls.

Generator Integration

Supports both standby and portable generators that can recharge the aPower battery while powering your home, providing extended backup during prolonged outages.

Smart Load Control

Optional Smart Circuits Module enables individual control over specific high-power appliances, programming them to run during off-peak hours for maximum savings.

Technical Specifications

Model Number AGT-R1V2-US
Nominal AC Voltage 120/208 V, 120/240 V, 60 Hz
Coupling AC-coupled
Grid Input OCPD 200 A Max
aPower OCPD 100 A Max
Solar Input OCPD 80 A Max
Busbar Rating 280 A
Dimensions (H × W × D) 31.5 in × 21.7 in × 6.3 in (800 mm × 550 mm × 160 mm)
Weight 38.6 lb (17.5 kg)
Enclosure Type NEMA Type 3R
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Certifications UL 1741, UL 1741 PCS, UL 67, UL 869A, UL 916, CAN/CSA C22.2 No. 107.1-16, CSA C22.2 No. 29, CSA C22.2 No. 0.19

aPbox Solar Expansion Solution

Intelligently Manage Additional Solar Capacity

FranklinWH aPbox Solar Expansion Solution

The FranklinWH aPbox enables seamless solar system expansion by intelligently managing and controlling additional solar strings. For systems where solar panels cannot connect directly through the aGate X solar breaker, the aPbox provides a smart junction solution to integrate remote or oversized solar arrays into your FranklinWH ecosystem.

This innovative device protects your energy storage system from overcharging while optimizing solar energy utilization. The aPbox is particularly valuable for preserving existing NEM contract rates while expanding your system, allowing you to add new solar capacity without compromising grandfathered net metering agreements.

Key Features

Intelligent Solar Management

Expands solar capacity beyond the aGate X input limit, allowing more solar-generated power to be stored or exported to the grid for increased energy independence.

System Protection

Automatically disconnects added solar systems when production exceeds battery and household demand, preventing overcharging and system shutdown during outages.

NEM Benefits Preservation

Install additional solar capacity without losing existing NEM 1.0 or 2.0 status, maintaining grandfathered net metering terms for your original system.

Universal Compatibility

Works with all inverter brands and integrates smoothly with new or existing PV systems without requiring power line alterations, reducing installation costs.

Technical Specifications

Nominal Voltage 120/240VAC, split
Frequency 60 Hz
Rated Output Current 1 circuit, max 65A
Rated Input Current 2 circuits, max 65A total
Dimensions (W × H × D) 11.8 in × 17.7 in × 5.9 in (300mm × 450mm × 150mm)
Weight 21.2 lbs. (9.6kg)
Mounting Options Wall mount (Indoors/Outdoors)
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Type of Enclosure NEMA Type 3R
Compliance UL 1741, California Proposition 65, FCC Part 15 Class B, ICES 003
