MAPPS® Remote Industrial Solar System Design Tool

This tool helps you find the right MAPPS® solar system in 3 easy steps!

Start by estimating your daily energy use with our MAPPS Load Calculator, entering every continuous or intermittent load and averaging any day-to-day swings. Next, pinpoint your location by clicking the "Solar Irradiance Map" link in step 2 to view the winter irradiance map and identify your specific zone. Once you have the watt-hours per day and your solar zone, enter them below alongside your desired system voltage to find the best MAPPS® system for your needs. Need help? Reach out to us at Contact@SolarElectricSupply.com for assistance related to MAPPS®.

MAPPS Remote Solar Power Systems Logo

1. Enter your Daily Power Requirement (Watt-hr/day)

Begin by listing every device you’ll power in the MAPPS® Load Calculator below – it adds up the Watt-hours for you in real time. For an ofline copy, download the excel worksheet.

  Download Load Calculator (Excel)

2. Select your Solar Zone

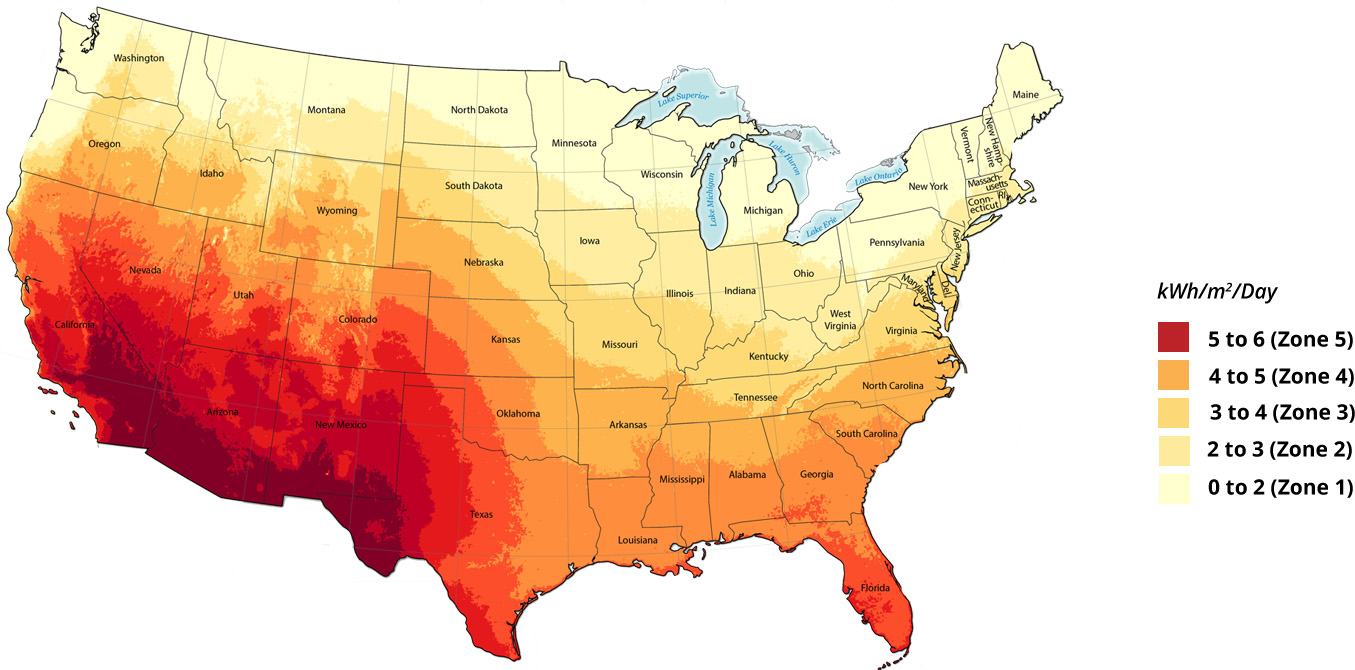

Locate your site on the Solar Irradiance Map (click to view) . The values represent average winter insolation; energy availability increases from Zone 1 to Zone 5.

View MAPPS® System Zone Design Tables

3. Select System Load Voltage

Pick a system voltage, then compare the table values for your zone to your required Watt-hours. Select the MAPPS model that meets or exceeds your need.

MAPPS® Watt-hr/day Load Calculator

Qty Load Description Amps Volts Watts Hours/day Watt‑hr/day
Total Watt‑hr/day: 0.00

* Example: Calculating Watt‑hours for a 25% duty‑cycle radio

Qty Load Description Amps Volts Watts Hours/day Watt‑hr/day
1 Radio Transmit 3 12 36 6 72
1 Radio Standby 0.5 12 6 18 108
Total Watt‑hr/day 324

* Use the actual operating current and duty‑cycle for each device to calculate daily Watt‑hours. Spec‑sheet ratings often show peak currents that are higher than average consumption. We recommend bench‑testing your equipment under expected field conditions for at least 24 hours before selecting a MAPPS® system.

MAPPS Logo

MAPPS® Solar Power System Performance Tables

The tables below represent the Watt-hours per day performance of each MAPPS system in the different solar zones. Choose your system voltage, then look down your solar zone column for the value that meets or exceeds your design load Watt-hours. Follow the row to the left for the corresponding prepackaged MAPPS system that will fully power your load requirements. Complimentary solar sizing analysis for your location can be provided with quotation.

12 Volt MAPPS® System Design Table

MAPPS® ID Number
Solar Array Wattage
Battery Amp-Hr Rating
Zone 1 MAPPS (Whr/d)
Zone 2 MAPPS (Whr/d)
Zone 3 MAPPS (Whr/d)
Zone 4 MAPPS (Whr/d)
Zone 5 MAPPS (Whr/d)
MAPPS 20-36-12
20W
36
11
22
32
43
54
MAPPS 30-58-12
30W
58
16
32
49
65
81
MAPPS 50-108-12
50W
108
27
54
81
108
135
MAPPS 90-108-12
90W
108
49
97
146
194
243
MAPPS 90-216-12
90W
216
49
97
146
194
243
MAPPS 120-216-12
120W
216
65
130
194
259
324
MAPPS 150-216-12
150W
216
81
162
243
324
405
MAPPS 180-216-12
180W
216
97
194
292
389
486
MAPPS 300-265-12
300W
265
162
324
486
648
810
MAPPS 300-530-12
300W
530
162
324
486
648
810

24 Volt MAPPS® System Design Table

MAPPS® ID Number
Solar Array Wattage
Battery Amp-Hr Rating
Zone 1 MAPPS (Whr/d)
Zone 2 MAPPS (Whr/d)
Zone 3 MAPPS (Whr/d)
Zone 4 MAPPS (Whr/d)
Zone 5 MAPPS (Whr/d)
MAPPS 90-108-24
90W
108
49
97
146
194
243
MAPPS 100-108-24
100W
108
54
108
162
216
270
MAPPS 200-108-24
200W
108
108
216
324
432
540
MAPPS 300-265-24
300W
265
162
324
486
648
810
MAPPS 400-265-24
400W
265
216
432
648
864
1080
MAPPS 400-530-24
400W
530
216
432
648
864
1080
MAPPS 600-530-24
600W
530
324
648
972
1296
1620
MAPPS 800-530-24
800W
530
432
864
1296
1728
2160
MAPPS 1200-530-24
1200W
530
648
1296
1944
2592
3240
MAPPS 1200-1060-24
1200W
1060
648
1296
1944
2592
3240

48 Volt MAPPS® System Design Table

MAPPS® ID Number
Solar Array Wattage
Battery Amp-Hr Rating
Zone 1 MAPPS (Whr/d)
Zone 2 MAPPS (Whr/d)
Zone 3 MAPPS (Whr/d)
Zone 4 MAPPS (Whr/d)
Zone 5 MAPPS (Whr/d)
MAPPS 1200-530-48
1200W
530
648
1296
1944
2592
3240
MAPPS 1600-795-48
1600W
795
864
1728
2592
3456
4320
MAPPS 2000-795-48
2000W
795
1080
2160
3240
4320
5400
MAPPS 2400-1060-48
2400W
1060
1296
2592
3888
5184
6480

120 Volt MAPPS® System Design Table

(Note: These systems include a DC to 120 VAC pure sine wave inverter for AC loads)

MAPPS® ID Number
Solar Array Wattage
Battery Amp-Hr Rating
Zone 1 MAPPS (Whr/d)
Zone 2 MAPPS (Whr/d)
Zone 3 MAPPS (Whr/d)
Zone 4 MAPPS (Whr/d)
Zone 5 MAPPS (Whr/d)
MAPPS 50-108-12-120
50W
108
23
46
69
92
115
MAPPS 90-108-12-120
90W
108
41
83
124
166
207
MAPPS 90-216-12-120
90W
216
41
83
124
166
207
MAPPS 100-216-12-120
100W
216
46
92
138
184
230
MAPPS 150-216-12-120
150W
216
69
138
207
276
345
MAPPS 200-108-24-120
200W
108
92
184
276
368
460
MAPPS 300-265-24-120
300W
265
138
276
414
552
690
MAPPS 400-530-24-120
400W
530
184
368
552
736
920
MAPPS 600-530-24-120
600W
530
276
552
828
1104
1380
MAPPS 800-530-24-120
800W
530
368
736
1104
1472
1840
M 1200-1060-24-120
1200W
1060
552
1104
1656
2208
2760
M 1600-795-48-120
1600W
795
736
1472
2208
2944
3680
M 2000-795-48-120
2000W
795
920
1840
2760
3680
4600
M 2400-1060-48-120
2400W
1060
1104
2208
3312
4416
5520
