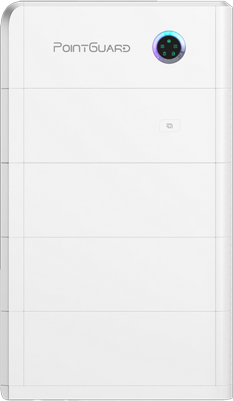

PointGuard Home: Intelligent Power for the Modern Home
The world’s first AI-optimized 5-in-One energy system — combining inverter, battery, EMS, EV DC charging, and intelligent controls into a resilient, expandable solution built for energy independence.
Learn More
A Fully Integrated 5-in-One Energy Ecosystem
PointGuard Home is an advanced all-in-one residential energy management system that unifies the solar inverter, EMS, battery modules, and optional EV DC charger into one seamless solution. Designed to deliver long-term savings, flexibility, and backup resilience, PointGuard enables homeowners to optimize solar energy usage while maintaining control over how and when power is used. The system features a field-configurable hybrid inverter, supporting outputs from 3.8 kW to 11.4 kW, allowing installers to tailor performance to site-specific needs without requiring additional hardware.
The modular architecture supports up to 390 kWh of storage capacity through stackable 5 or 8 kWh battery packs, while integrated AI tools help maximize performance, extend battery life, and support grid service participation. Built with NEMA 4X enclosures, PointGuard Home is ready for indoor or outdoor installs — no matter the terrain or climate.
5-in-One Energy Integration
Unifies inverter, battery, EMS, charger, and PCS in a single AI-optimized system for smarter energy control and easy installation.
Modular & Stackable Design
Expandable from 5 to 390 kWh with stackable battery packs—ideal for both small homes and large residential estates.
Ultra-Fast Setup
Tool-free plug-and-play connectors with 5-minute commissioning and 2-minute software updates speed up installation time.
AI-Driven Optimization
Adaptive learning system enhances battery life, supports grid services, and automates energy planning via the myPointGuard App.
PointGuard Home Energy Controller
Field-Configurable AI-Controlled Inverter + EMS
The PointGuard Home Energy Controller is a highly adaptable, AI-optimized inverter and energy management system designed to control and protect every aspect of your home energy infrastructure. With built-in EMS, 4 MPPT inputs, and full NEMA 4X outdoor durability, this smart controller delivers precision performance for grid-tied and backup applications.
It features DC ground-fault protection, seamless on/off-grid transition, and field-configurable inverter output ranging from 3.8 kW to 11.4 kW. Its multi-source black start capability and NEC 2023 rapid shutdown compliance ensure reliable, code-compliant installs in any climate or condition.
Key Features
Field-Configurable Output
Adjustable inverter output from 3.8 to 11.4 kW ensures optimal sizing for any residential energy system.
All-in-One Design
Combines the inverter, EMS, battery interface, and safety functions into a single streamlined enclosure.
Full Backup Control
Multi-source black start and AFCI integrated for safe, uninterrupted operation during outages.
AI-Optimized Efficiency
Self-learning energy management adapts to household patterns and weather forecasts to maximize uptime and savings.
Technical Specifications
| Model Number | PGHome Controller A1 |
|---|---|
| Field Configurable Output Range | 3.8 / 4.8 / 5.7 / 7.6 / 9.6 / 11.4 kW |
| Max PV Input (DC) | 4 MPPTs, 200% PV input oversizing supported |
| Max Input Current | 16 A per MPPT |
| AC Output Voltage | 240/120V split-phase |
| Max Efficiency | 98.0% |
| Battery Compatibility | PointGuard BatteryPack 5.0 / 8.0 |
| System Enclosure | NEMA 4X Outdoor Rated |
| Certifications | NEC Rapid Shutdown Compliant, AFCI Integrated |
| Cooling | Smart Air Cooling |
PointGuard LoadHub
Smarter Load Management & Seamless Backup Switching
The PointGuard LoadHub is an advanced backup load center that enables real-time control, monitoring, and energy prioritization for homes powered by PointGuard Home. With intelligent switchover functionality and app-based management, the LoadHub delivers seamless energy transitions with zero downtime.
Constructed from lightweight aluminum, this corrosion-resistant panel houses up to 12 controllable circuits and supports hybrid power sources including solar, grid, and generator. Monitor and manage your home’s backup loads efficiently with the intuitive myPointGuard App.
Key Features
Instant Switchover
Zero-millisecond transfer to backup power ensures uninterrupted energy during outages or grid disruptions.
Lightweight Aluminum Enclosure
Weighs over 20 lbs less than standard galvanized steel models while offering superior corrosion resistance.
Flexible Load Control
Supports up to 6 double-pole controllable loads and 2 PointGuard Home units with real-time monitoring and prioritization.
Hybrid Power Ready
Compatible with grid, solar, and generator sources for maximum flexibility and backup redundancy.
Technical Specifications
| Nominal AC Voltage | 120 / 240 V |
|---|---|
| Max. Continuous Current | 200 A |
| Backup Switchover Time | 0 ms |
| Supported PG Controller Connections | Up to 2 (48 A each) |
| Controllable Loads | 6 double-pole / 12 single-pole |
| Smart Load Port Max. Current | 64 A (80 A OCPD) |
| Generator Support | 2-wire start, 64 A (80 A OCPD) |
| Enclosure Type | Type 3R, Wall-mounted |
| Cooling | Natural Convection |
| Dimensions (W × H × D) | 20.5 in × 29.5 in × 7 in (520 × 750 × 177 mm) |
| Weight | 60 lb (27 kg) |
| Operating Temperature | -22°F to 131°F (-30°C to 55°C) |
| Certifications | UL 67, UL 869A, UL 1741, CSA C22.2 No.107.1, FCC Part 15, ICES-003 |
PointGuard Battery Pack
Modular Energy Storage with 5 or 8 kWh per Pack
The PointGuard Battery Pack delivers scalable and intelligent home energy storage in modular 5 or 8 kWh units. Designed with long-lasting LiFePO₄ chemistry and natural convection cooling, these packs offer reliable performance in both residential and light commercial settings.
Thanks to self-guiding plug connectors and tool-free stacking, installation is quick and field wiring is minimized. Each battery module is AI-assisted for optimized performance and lifecycle, while battery health and system status can be monitored in real-time via the myPointGuard App.
Key Features
Scalable Storage
Modular 5 and 8 kWh packs stack up to 10 high, supporting up to 390 kWh per system.
Effortless Installation
Self-guiding plug connectors eliminate field wiring, saving time and labor costs.
AI Optimization
Smart cycle management and predictive diagnostics extend battery life and boost performance.
Reliable & Durable
IP-rated NEMA 4X enclosure and natural convection cooling make it ideal for all environments.
Technical Specifications
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
|---|---|
| Total Energy Capacity | 5.38 kWh / 8.06 kWh |
| Usable Energy Capacity | 5.2 kWh / 7.8 kWh |
| Max Charge / Discharge Power | 2850 W / 4350 W |
| Installation Method | Floor-standing / Wall-mounted |
| Cooling | Natural Convection |
| System Enclosure Type | NEMA 4X |
PointGuard Home Accessories
Enhance functionality and control of your PointGuard Home system
PointGuard Home Accessories expand the capabilities of your energy system with intelligent monitoring, real-time communication, and flexible install options. Each component integrates seamlessly with the core PointGuard ecosystem and is engineered for long-term durability and ease of installation.
4G Communication Module
Supports 3G/4G mobile networks with a plug-and-play setup. Features a NEMA 4X-rated enclosure for durable, weather-resistant performance in all conditions.
Power Sensor with 3 CTs
Offers 1% high-accuracy real-time power detection with a 100 ms data refresh rate. Displays info via LCD and integrates instantly with PointGuard Home—no configuration required.

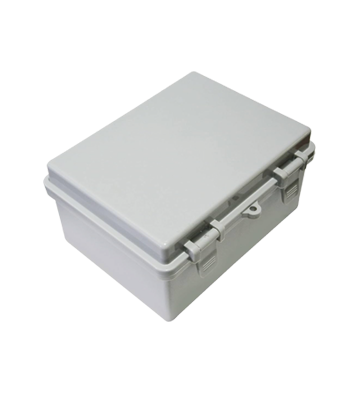

Optional Outdoor Enclosure
Protect your Power Sensor in rugged environments with a weatherproof, tamper-resistant outdoor enclosure. Ideal for exposed or high-traffic installations.
