120 Watt 24VDC 99Ahr Class 1 Division 2 Solar Panel System
The product is in stock
Usually shipps in less than 24 hours
SKU
MAPPS-120-99-24-C1D2
$5,554.00
solar systems for Class 1 Division 2
Class 1 Division 2 Solar Systems
120 Watt 24VDC 99Ahr Class 1 Division 2 Solar Panel System
Solar system designed and certified for Class 1 Division 2 Hazardous Locations.
Certified for Class 1 Division 2
This safe, reliable, durable, and rugged 2-battery Class 1 Division 2 system is designed to require minimal maintenance and long life. Twenty year design life (with battery replacements approximately every five to seven years).
C1D2 certified solar electric systems have no moving parts. Solar Electric Supply deals only in modules and components with the highest international standards, such as Underwriters Laboratories (UL) and ETL Intertek listings in the US, and approval by the Commission of the European Communities (CEC) in Europe.
120W 24V Class 1 Division 2 Solar System w/ 2 8G27 batteries
Pre-wired charge controller included.
Features two draw-latches that are lockable for up to a 3/8" max shackle.
Enclosure comes pre-assembled and pre-wired, for quality control and quick installation
Designed for 2”-4” SCH40 pole mount
System voltage: 24 volts DC
Solar module and regulator are UL listed and certified
Batteries are maintenance-free Deka Solar gel cell for deep cycle operation and extended life in solar applications
Charge regulators include Low Voltage Disconnect (LVD) and temperature compensation
Enclosures are powder coated aluminum for corrosion resistance and include padlockable hasps.
Electronics are housed in a separate compartment
Circuit breakers are included as a means of disconnect and for short circuit protection
Systems use with SES Solar C1D2 certified PV module
External wiring sold separately
Certifications
Conforms to: ISA STD 12.12.01 & UL STD 508A. The UL STD 508 certification is required for Class 1 Division 2 Hazardous Locations.
Class 1 Div 2 Solar Power System Applications
No matter what extreme environment on Earth: arctic, desert, coastal or tropical, this corrosion-resistant solar power system is ideal for your next remote Class I Division II Hazardous Location project.
Solar battery powered C1D2 examples can include:

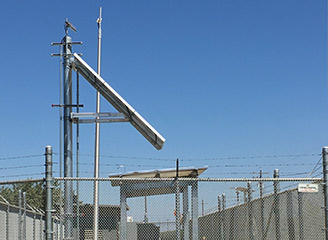

flow measurement & monitoring, level measurement, oil and gas pipeline security, wireless communication, well site automation, cathodic protection, environmental monitoring, chemical injection pumps, SCADA and UPS battery backup systems.
Contact us with your solar powered application today. OEM pricing available.
Solar Electric Supply specializes in supplying dealer, contractor, government and industrial accounts worldwide with reliable, cost-effective Class 1 Division 2 solar electric power solutions.
Contact us toll-free: (877) 297-0014 for expert assistance and wholesale prices for the SES MAPPS 120W 24 volt Class 1 Division 2 Solar System with 2 batteries.
