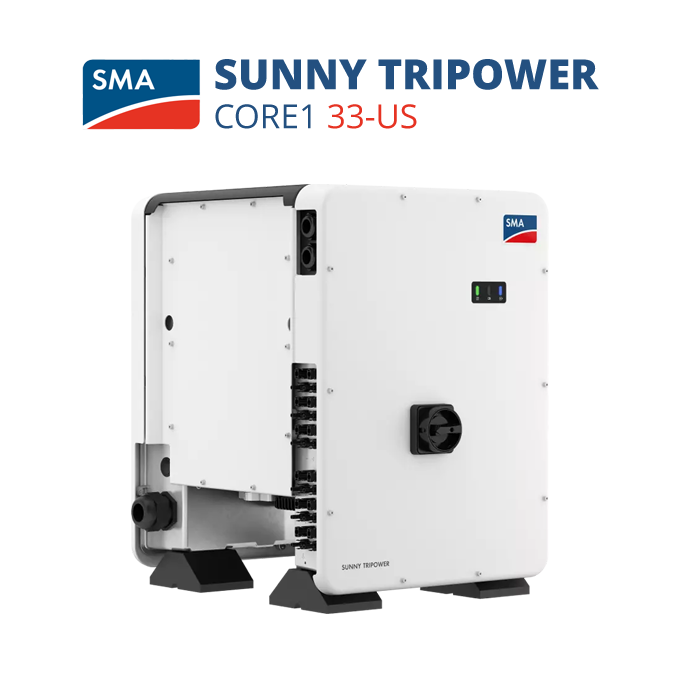

SMA Sunny Tripower Core1 33-US-41 Commercial Inverter

STP 33-US-41 Specifications

Nominal AC Power	33300 W
Max PV Array Power	50000 Wp STC
Max Input Voltage	1000 V
MPP Voltage Range	330 V to 800 V
Number of Independent MPP Trackers	6
Max. Input Current per MPP Tracker	20 A
Max Output Current	40 A
CEC Efficiency	97.5%
Dimensions (W/H/D)	24.4 in x 28.8 in x 22.4 in
Weight	185 lbs
Operating Temperature Range	-25°C to +60°C
Enclosure Rating	Type 4X, 3SX (as per UL 50E)

complete commercial solar systems

Roof Mount System Price List

Ground Mount System Price List

SMA Sunny Tripower Core1-US Commercial Inverter STP 33-US-41

Name: SMA Sunny Tripower Core1-US Commercial Inverter STP 33-US-41
SKU: SMA-COMMERCIAL-TRIPOWER-CORE1-33-US-41

SKU SMA-COMMERCIAL-TRIPOWER-CORE1-33-US-41

SMA Sunny Tripower Core1 33-US

The SMA Sunny Tripower CORE1 33-US is a commercial solar inverter that revolutionizes installation and performance for medium to large-scale solar projects. As the world's first free-standing string inverter, it offers unprecedented flexibility and efficiency for commercial rooftop, carport, and ground-mounted PV systems. With its 33kW capacity, the CORE1 33-US delivers exceptional performance and reliability in a unique, space-saving design.

Featuring six independent MPP trackers, the Sunny Tripower CORE1 33-US provides unparalleled flexibility in system design, optimizing energy harvest across complex roof structures or partially shaded environments. Its innovative free-standing design significantly reduces installation time and costs by eliminating the need for additional mounting structures.

SMA Tripower Core1 33-US Features

Free-Standing Design: Unique form factor eliminates need for additional racking, reducing installation time and costs by up to 60%.
SMA ShadeFix: Integrated string-level optimization technology maximizes energy yield without additional hardware.
Enhanced Safety Features:Includes integrated DC disconnect, AC disconnect, and SunSpec PLC signal for module-level rapid shutdown.
Six MPP Trackers: Offers maximum flexibility for stringing and optimal performance in complex or partially shaded installations.
Intelligent String Monitoring: Advanced monitoring capabilities allow for precise performance analysis and quick issue resolution.

SMA Tripower Core1 Accessories

SMA Sensor Module (MD.SEN-US-40)
SMA Data Manager M (EDMM-US-10)
Universal Mounting System (UMS_KIT-10)
AC Surge Protection Module Kit (AC_SPD_KIT1-10, AC_SPD_KIT2_T1T2)
DC Surge Protection Module Kit (DC_SPD_KIT4-10, DC_SPD_KIT5_T1T2)

Attachments Details

SMA SUNNY TRIPOWER Core1 33-US Inverter Review

The SMA Sunny Tripower CORE1 33-US stands out as a powerful and efficient solution in the commercial solar inverter market. Its innovative free-standing design is a true differentiator, offering unprecedented flexibility in installation locations and significantly reducing installation time and costs. This 33kW model strikes an excellent balance between power output and manageability, making it ideal for a wide range of medium to large commercial applications. A key strength of the CORE1 33-US is its six independent MPP trackers, which provide exceptional flexibility in system design. This feature, combined with SMA's ShadeFix technology, ensures optimal energy harvest even in complex installations with varying roof angles or partial shading.

The CORE1 33-US's intelligent string monitoring capabilities are particularly noteworthy, allowing for detailed performance analysis and quick identification of any issues. This, coupled with its compatibility with SMA's comprehensive energy management platform, makes it an excellent choice for businesses looking to maximize their solar investment while simplifying system management and maintenance. .
