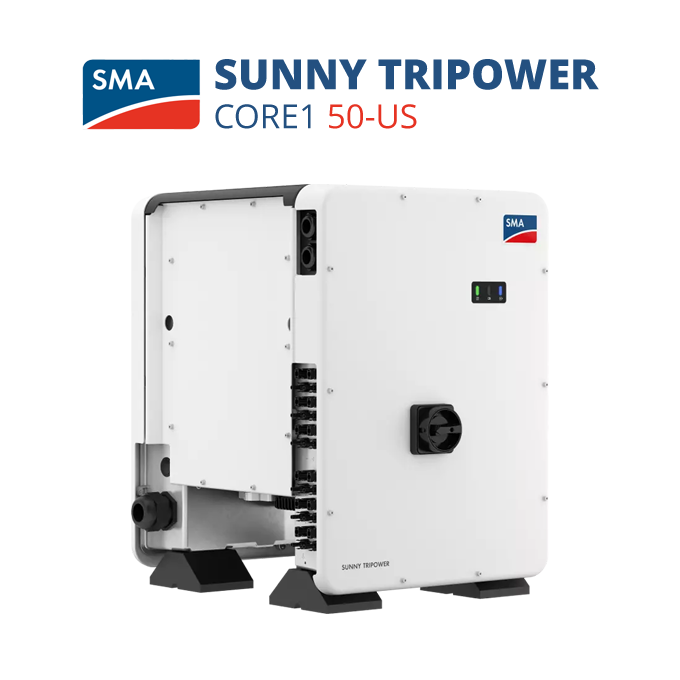

SMA Sunny Tripower Core1 50-US-41 Commercial Inverter

STP 50-US-41 Specifications

Nominal AC Power	50000 W
Max PV Array Power	75000 Wp STC
Max Input Voltage	1000 V
MPP Voltage Range	500 V to 800 V
Number of Independent MPP Trackers	6
Max. Input Current per MPP Tracker	20 A
Max Output Current	64 A
CEC Efficiency	97.5%
Dimensions (W/H/D)	621 x 733 x 569 mm
Weight	84 kg
Operating Temperature Range	-25°C to +60°C
Enclosure Rating	Type 4X, 3SX (as per UL 50E)

complete commercial solar systems

Roof Mount System Price List

Ground Mount System Price List

SMA Sunny Tripower Core1-US Commercial Inverter STP 50-US-41

Name: SMA Sunny Tripower Core1-US Commercial Inverter STP 50-US-41
SKU: SMA-COMMERCIAL-TRIPOWER-CORE1-50-US-41

SKU SMA-COMMERCIAL-TRIPOWER-CORE1-50-US-41

SMA Sunny Tripower Core1 50-US

The SMA Sunny Tripower CORE1 50-US is a high-capacity, free-standing commercial solar inverter designed to meet the demands of large-scale solar installations. Building on the innovative design of the CORE1 series, this 50kW model offers increased power output while maintaining the flexibility and efficiency that define the CORE1 line.

Equipped with six independent MPP trackers, the Sunny Tripower CORE1 50-US provides exceptional flexibility in system design, optimizing energy harvest across expansive or complex installations. The inverter's innovative design significantly reduces installation time and costs by eliminating the need for additional mounting structures, even at this higher power class.

SMA Tripower Core1 50-US Features

Free-Standing Design: Unique form factor eliminates need for additional racking, reducing installation time and costs by up to 60%.
SMA ShadeFix: Integrated string-level optimization technology maximizes energy yield without additional hardware.
Enhanced Safety Features:Includes integrated DC disconnect, AC disconnect, and SunSpec PLC signal for module-level rapid shutdown.
Six MPP Trackers: Offers maximum flexibility for stringing and optimal performance in complex or partially shaded installations.
Intelligent String Monitoring: Advanced monitoring capabilities allow for precise performance analysis and quick issue resolution.

SMA Tripower Core1 Accessories

SMA Sensor Module (MD.SEN-US-40)
SMA Data Manager M (EDMM-US-10)
Universal Mounting System (UMS_KIT-10)
AC Surge Protection Module Kit (AC_SPD_KIT1-10, AC_SPD_KIT2_T1T2)
DC Surge Protection Module Kit (DC_SPD_KIT4-10, DC_SPD_KIT5_T1T2)

Attachments Details

SMA SUNNY TRIPOWER Core1 50-US Inverter Review

The SMA Sunny Tripower CORE1 50-US emerges as a powerhouse solution for large commercial solar installations. Its 50kW capacity, combined with the innovative free-standing design of the CORE1 series, offers an unparalleled blend of power, flexibility, and ease of installation. This model is particularly well-suited for expansive commercial rooftops, large carport structures, or ground-mounted arrays where high power density and installation efficiency are crucial. A standout feature of the CORE1 50-US is its ability to maintain the unique benefits of the CORE1 design at a higher power class. The six independent MPP trackers provide exceptional flexibility in system design, allowing for optimal performance even in complex, large-scale installations with varying roof angles or partial shading

The inverter's intelligent string monitoring capabilities truly shine in larger installations, allowing for detailed performance analysis and quick identification of issues across extensive solar arrays. This feature, combined with its compatibility with SMA's comprehensive energy management platform, makes the CORE1 50-US an excellent choice for businesses looking to maximize their solar investment. .

Learn More about the SMA Sunny Tripower Series Inverters
