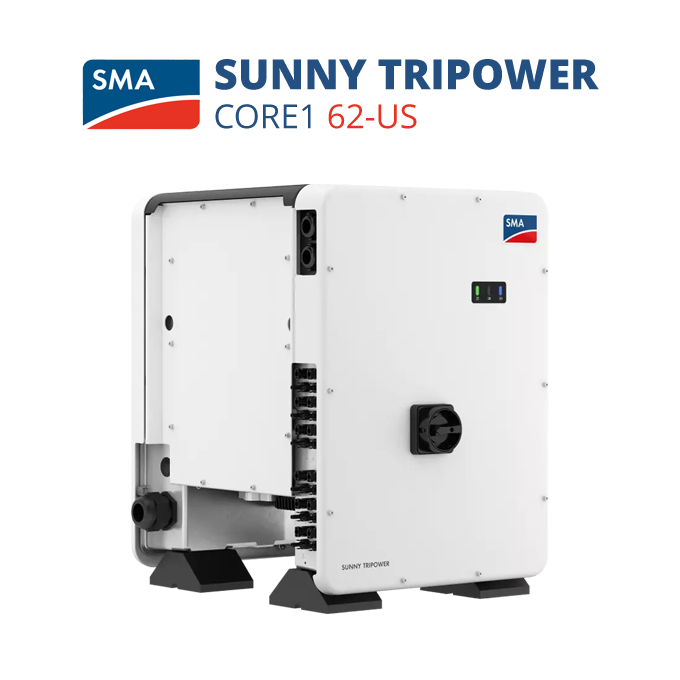

SMA Sunny Tripower Core1 62-US-41 Commercial Inverter

STP 62-US-41 Specifications

Nominal AC Power	62500 W
Max PV Array Power	93750 Wp STC
Max Input Voltage	1000 V
MPP Voltage Range	550 V to 800 V
Number of Independent MPP Trackers	6
Max. Input Current per MPP Tracker	20 A
Max Output Current	80 A
CEC Efficiency	97.5%
Dimensions (W/H/D)	24.4 in x 28.8 in x 22.4 in
Weight	185 lbs
Operating Temperature Range	-25°C to +60°C
Enclosure Rating	Type 4X, 3SX (as per UL 50E)

complete commercial solar systems

Roof Mount System Price List

Ground Mount System Price List

SMA Sunny Tripower Core1-US Commercial Inverter STP 62-US-41

Name: SMA Sunny Tripower Core1-US Commercial Inverter STP 62-US-41
SKU: SMA-COMMERCIAL-TRIPOWER-CORE1-62-US-41

SKU SMA-COMMERCIAL-TRIPOWER-CORE1-62-US-41

SMA Sunny Tripower Core1 62-US

The SMA Sunny Tripower CORE1 62-US offes an impressive 62.5kW capacity along with SMA's innovative free-standing design. This high-power inverter is engineered to meet the demands of large-scale commercial and industrial solar installations, providing unparalleled performance and flexibility for expansive rooftop, carport, and ground-mounted PV systems. The CORE1 62-US combines maximum power output with the space-saving and cost-efficient benefits that define the CORE1 series.

Equipped with six independent MPP trackers, the Sunny Tripower CORE1 62-US offers exceptional versatility in system design, optimizing energy harvest across extensive and complex installations. Despite its high power rating, this inverter maintains the compact, free-standing form factor of the CORE1 line, significantly reducing installation time and costs even for large-scale projects.

SMA Tripower Core1 62-US Features

Free-Standing Design: Unique form factor eliminates need for additional racking, reducing installation time and costs by up to 60%.
SMA ShadeFix: Integrated string-level optimization technology maximizes energy yield without additional hardware.
Enhanced Safety Features:Includes integrated DC disconnect, AC disconnect, and SunSpec PLC signal for module-level rapid shutdown.
Six MPP Trackers: Offers maximum flexibility for stringing and optimal performance in complex or partially shaded installations.
Intelligent String Monitoring: Advanced monitoring capabilities allow for precise performance analysis and quick issue resolution.

SMA Tripower Core1 Accessories

SMA Sensor Module (MD.SEN-US-40)
SMA Data Manager M (EDMM-US-10)
Universal Mounting System (UMS_KIT-10)
AC Surge Protection Module Kit (AC_SPD_KIT1-10, AC_SPD_KIT2_T1T2)
DC Surge Protection Module Kit (DC_SPD_KIT4-10, DC_SPD_KIT5_T1T2)

Attachments Details

SMA SUNNY TRIPOWER Core1 62-US Inverter Review

The SMA Sunny Tripower CORE1 62-US stands as a testament to SMA's commitment to innovation in commercial solar technology. This high-capacity 62.5kW inverter brings the unique benefits of the CORE1 series to large-scale commercial and industrial installations, offering an unmatched combination of power, flexibility, and ease of deployment. It's particularly well-suited for extensive commercial rooftops, large carport structures, or sizeable ground-mounted arrays where maximizing power density and minimizing installation complexity are paramount.

One of the most impressive aspects of the CORE1 62-US is how it scales the advantages of the CORE1 design to this high power class. The free-standing design continues to offer significant time and cost savings during installation, even for these larger systems. This feature, combined with its compact footprint relative to its power output, makes the CORE1 62-US an excellent choice for projects where space optimization is crucial. .

Learn More about the SMA Sunny Tripower Series Inverters
