Whole-Home Backup, Solar Optimization, and Smarter Power
Tesla Powerwall 3 is a fully integrated home battery with a built-in solar inverter that's designed to keep critical
loads running during outages while helping homeowners store more solar and reduce peak utility costs.
With high power output, multiple MPPT channels for complex arrays, and app-based control, Powerwall 3 is a
clean, scalable foundation for resilient home energy.
11.5 kW continuous power supports whole-home backup and higher-demand loads
13.5 kWh usable storage stores solar energy for night use and outage protection
6 MPPT solar input captures more production from multiple roof planes
Expandable capacity add Powerwall 3 Expansion units as needs grow
Built for Real Homes
Powerwall 3 is engineered for day-to-day comfort and real outage resilience—high power for large loads,
solar-first performance, and simple monitoring in the Tesla app.
Whole-Home Backup Power
High continuous output helps keep HVAC, pumps, and essential circuits running.
Smarter Solar Self-Consumption
Store more of your solar production and use it when rates are highest.
App-Based Control
Monitor production, consumption, and battery status from one clean interface.
Tesla Powerwall 3 (13.5 kWh) Home Energy Storage
Powerwall 3 combines 13.5 kWh of usable energy storage with an integrated inverter capable of 11.5 kW continuous
output—so one unit can support most residential backup needs. With up to 20 kW of DC solar input and 6 MPPT
channels, it’s optimized for modern PV systems and multi-orientation arrays. Designed for reliable performance
across seasonal temperatures, Powerwall 3 also supports high inrush loads for motors and compressors.
11.5 kW continuous power supports larger home loads and critical circuits during outages.
Integrated Solar Inverter
Built-in conversion with multiple MPPT channels reduces components and simplifies design.
Starts Heavy Loads
High motor-start capability helps run compressors, pumps, and other high-inrush equipment.
Scales as You Grow
Add Expansion units to increase storage capacity without redesigning the core system.
Powerwall 3 Quick Specs
Specification
Value
Usable Energy
13.5 kWh
Continuous Power
11.5 kW (AC)
Solar Input
Up to 20 kW DC (6 MPPT)
Operating Range
-4°F to 122°F
Warranty
10 years
Tesla Powerwall 3 Expansion (13.5 kWh) Battery Module
Powerwall 3 Expansion is a battery-only module that increases storage by 13.5 kWh for existing Powerwall 3
systems. Because it shares the primary Powerwall 3 inverter, Expansion units deliver a lower cost-per-kWh way
to extend backup duration and store more solar. Add up to three Expansion units per Powerwall 3 to scale system
capacity for larger homes, longer outages, or higher overnight usage.
Battery-only design avoids paying for extra inverter hardware you don’t need.
Modular Add-On
Increase capacity in steps—add one now and more later as energy needs change.
System Scaling
Up to three Expansion units per Powerwall 3 for significantly longer backup duration.
One App, One System
Unified monitoring and control in the Tesla app. Expansion integrates automatically.
Powerwall 3 Expansion Quick Specs
Specification
Value
Model
1807000-xx-y
Nominal Battery Energy
13.5 kWh
Maximum Expansion Units
Up to 3 per Powerwall 3
Dimensions (H × W × D)
43.5" × 24" × 6.6"
Weight (Complete Unit)
261.2 lbs
Warranty
10 years

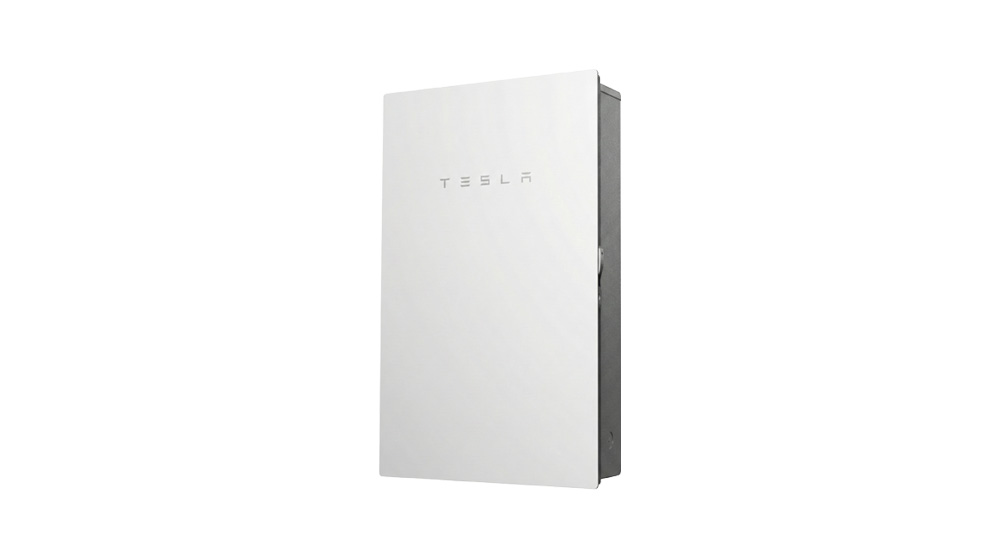

Tesla Gateway 3 Power Management System
Gateway 3 is the control and metering hub that manages grid connection for Powerwall systems. It detects outages,
coordinates automatic transitions to backup power, and provides accurate energy monitoring for the Tesla app.
With a 200A rating and optional integrated load-center configuration, Gateway 3 helps streamline installation
for whole-home and partial-backup designs.
Detects grid outages and manages safe islanding for uninterrupted backup transitions.
Accurate Metering
Revenue-grade monitoring helps track production, consumption, and battery performance.
Install Flexibility
200A platform with breaker compatibility and optional internal panelboard options.
Tesla App Integration
System status, alerts, and control—visible in one interface with your Powerwall system.
Tesla Gateway 3 Quick Specs
Specification
Value
Model
1841000-01-Y
Continuous Current Rating
200 A
Maximum Supply Short Circuit Current
25kA
Dimensions (H × W × D)
660 x 411 x 149mm
Weight (Complete Unit)
36 lbs
Warranty
10 years

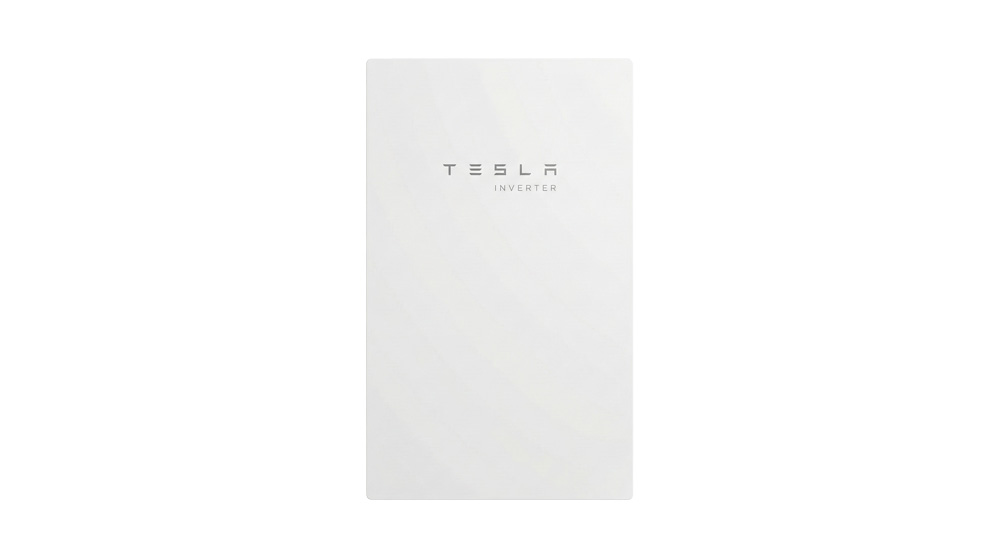

Tesla Solar Inverter (3.8kW–7.6kW)
The Tesla Solar Inverter is a residential string inverter platform offered in four power levels from 3.8kW to
7.6kW and is engineered for flexible PV design and reliable long-term performance. Built on Tesla’s proven power
electronics, it delivers up to 98.6% peak efficiency (98.0% CEC) and uses 4 independent MPPT channels to
maximize production across multiple roof planes, orientations, and partial shading.

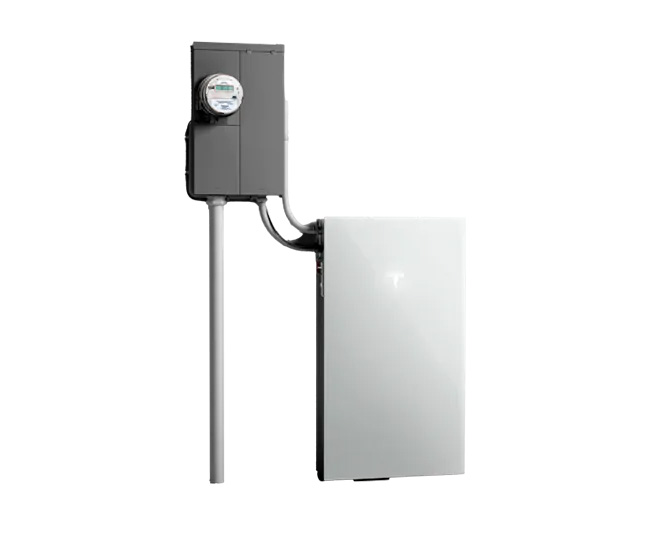

A compact grid-isolation device installed behind the meter (or in a meter panel) that automatically
disconnects and reconnects utility service during outages, supporting whole-home backup configurations.

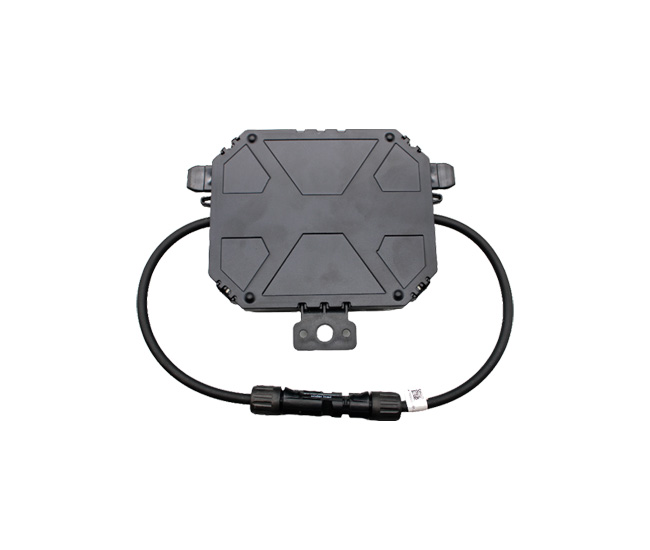

Mid-Circuit Interrupter devices that provide NEC-required rapid shutdown for PV arrays, enhancing safety for
service and emergency response while integrating cleanly with Powerwall-based solar systems.
