Fast, Reliable Foundations for Solar and Structural Projects
American Ground Screw is North America’s only ICC-certified manufacturer of ground screw foundation systems. Their technology enables fast, permanent, and code-compliant installations without the need for concrete, excavation, or curing delays. These precision-engineered solutions are ideal for solar ground mounts, carports, trackers, battery enclosures, and other structural applications.
Available in a wide range of lengths and diameters, American Ground Screw products accommodate standard 2" and 3" pipe racking. They are also suitable for rocky or dense soils where traditional anchoring methods may be ineffective. Manufactured from Q235B galvanized steel, these screws offer a 50+ year design life and 20-year product warranty — while reducing embedded carbon by up to 97.5% compared to poured concrete.
All-Season Installation
No delays — ready to install in any weather without waiting on concrete.
No Excavation Required
Designed for use with handheld or machine-mounted drivers for clean, low-impact installs
Reusable & Recyclable
Engineered for reversibility and reusability with long service life in the field
ICC-Certified Strength
Compliant with U.S. building codes under ICC-ES ESR-4226 for trusted structural integrity
Open-Top Screws for Solar & Structural Foundations
Built for Rapid Deployment, High Load Capacity & Long-Term Performance

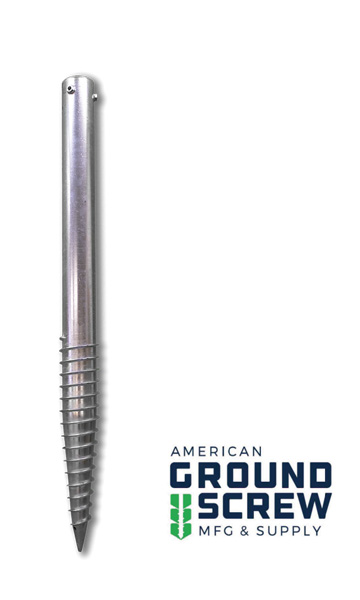

The Model 3 Series from American Ground Screw features open-top screw anchors available in multiple diameters and lengths to suit a wide range of projects. These ICC-certified foundation screws are designed for rapid deployment and immediate load-bearing applications. Suitable for solar PV racking, carports, ground-mounted battery banks, and light structural loads, the Model 3 Series delivers proven performance with simplified installation.
Each screw is manufactured from high-grade Q235B steel with hot-dip galvanization meeting ASTM A123 standards. Helical threading ensures secure embedment in varying soil types, while the open-top design supports a wide range of connection hardware and pipe diameters from 2" to 4.5". Model 3 screws are compatible with both handheld and hydraulic drive systems.
Key Features
Code-Compliant Engineering
Certified under ICC-ES ESR-4226 to meet U.S. and Canadian building codes.
Flexible Installation
Can be installed using compact handheld tools or larger hydraulic drivers, based on project needs.
Solar-Ready Foundation
Ideal for ground-mounted solar PV arrays, carports, and battery systems with no curing delay.
Broad Sizing Range
Available in multiple diameters and lengths up to 98” to match structural requirements.
Technical Specifications
| Product Type | Open-Top Ground Screw – Model 3 Series |
|---|---|
| Lengths Available | 864mm (34") to 2,500mm (98") |
| Outer Diameter Range | 50mm (2") to 114mm (4.5") |
| Thread Length Range | 610mm to 880mm |
| Wall Thickness | 2mm to 3.75mm |
| Steel Material | Q235B Structural Grade Steel |
| Surface Treatment | Hot-Dip Galvanized – ASTM A123 |
| Certification | ICC-ES ESR-4226 |
| Installation Method | Handheld Driver or Hydraulic Machine |
| Load Capacity | Ready for immediate structural loading |
| Design Life | 50+ Years |
| Environmental Benefit | Up to 97.5% less embedded carbon than concrete |
