| Model Number | IG Plus 5.0 |
| AC Nominal Power (W) | 5000.0 |
| Peak Efficiency | 0.962 |
| CEC Weighted Efficiency | 0.955 |
| Weight (lbs) | 57.0 |
| Height (in) | 36.4 |
| Width (in) | 17.1 |
| Depth (in) | 9.6 |

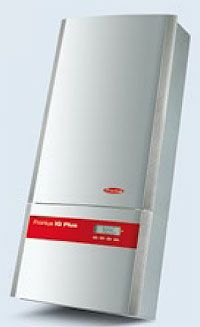

Fronius IG Plus 5.0 Inverter
SKU IG Plus 5.0- 5750W Peak DC Input
- Max. Efficiency 96.2%
- 230-500V AC Output
IG Plus Series Inverters
This efficient two power stage device is available in 5.0, 6.0 and 7.5 kW and is field programmable to 208, 240 or 277 volts.
New, larger power stages expand the proven Fronius IG family from 2 to 12 kW in a single inverter.
Maximum Earnings Security
Get the most power out of every ray of sunlight. This is achieved through a complex interaction of different factors:
Three Efficiency Peaks
Greater power harvest for every system size. The unique automatic transformer switching function of the Fronius IG Plus enables not one, but three equal efficiency peaks. The result: Consistently high efficiency over a wide input voltage range. In comparison: The efficiency of inverters without transformer switching function of the Fronius IG Plus enables not one, but three equal efficiency peaks. The result: Consistently high efficiency over a wide input voltage range. In comparison: The efficiency of inverters without transformer switching declines steadily with an increasing input voltage.
