Introducing: Infinity Rack Light

What is Infinity Rack Light?

  • Made in USA with US Steel and Aluminum
  • Elegant alternative to rooftop solar at competitive pricing
  • 50%+ material cost reduction with slimmer aluminum profile
  • Waterproof shade structure that generates offsetting energy
  • Mechanically watertight with concealed wire chaseways
  • Withstands 120mph winds and 40psf snow loads
  • 12ft spacing capability, engineered for most USA regions
* Professional Installation Only!
Contractor/Commercial only—turnkey solution with engineering, design, and on site training available. 3D Modeling & Design available with Proposal. Engineering and Plan sets provided with every project.

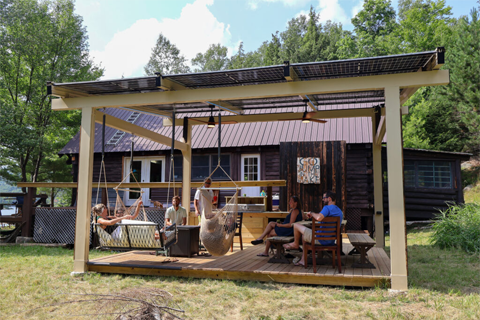

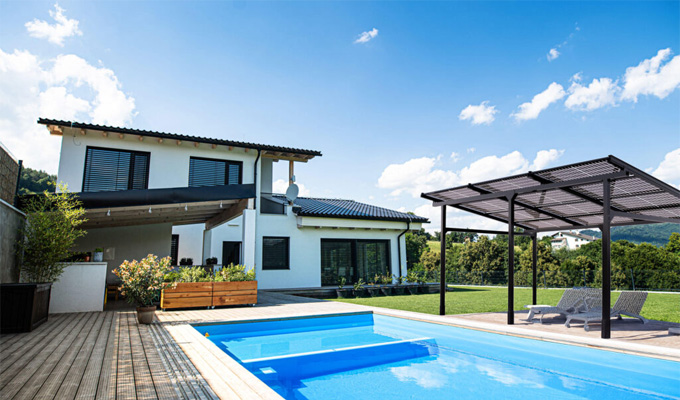

Infinity Rack Light Solar Pergola Installation

Waterproof shade structure that generates clean energy

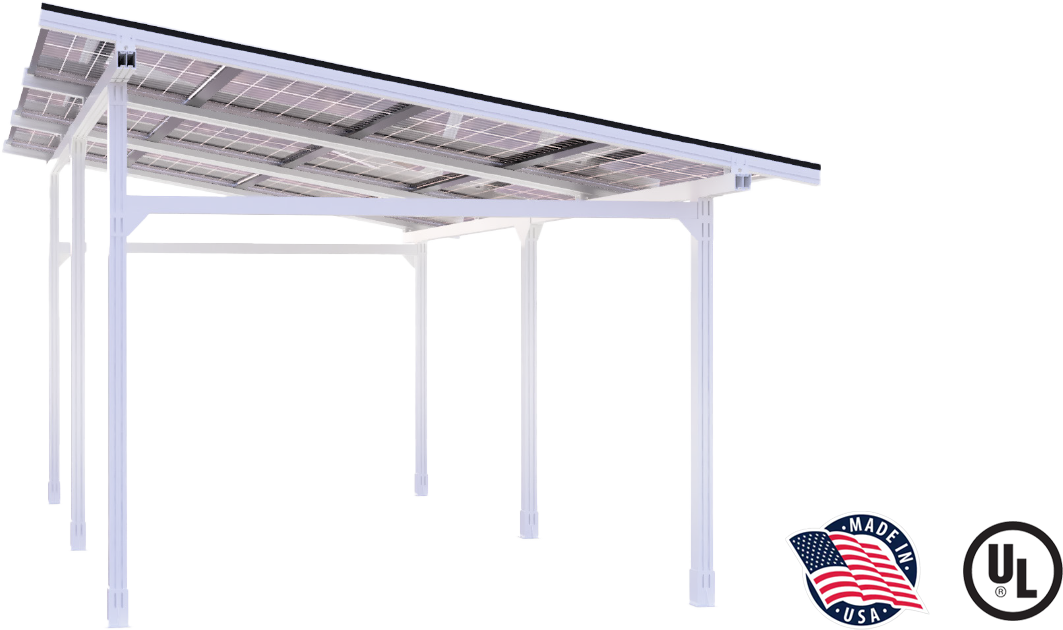

Infinity Rack Light Solar Structure

Infinity Rack Light Solar Mounting System

Same great quality, durability, and sleek design at a fraction of the price. The Infinity Rack Light features a slimmer aluminum profile that reduces material use, cutting costs by 50%+ while maintaining the mechanically watertight design that withstands extreme weather conditions.

Download Infinity Rack Light Product Sheet

50% Cost Reduction

Slimmer aluminum profile reduces material costs by 50%+ compared to traditional solar mounting systems.

Quick Installation

Smaller profiles mean lighter components and quicker installation with 3/8" T-Bolt system.

Weather Resistant

Withstands up to 120mph winds and 40psf snow loads with mechanically watertight design.

Modular Design

Unlimited custom configurations with 32 pre-engineered options and modular components.

Lifetime Warranty

Lifetime structural warranty on framing and brackets, 10 year on gaskets & paint.

Bifacial Panel Support

Supports large format bifacial solar panels on all four sides for maximum energy generation.

Integrated Utilities

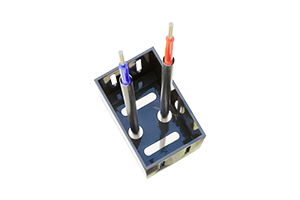

Post bases designed to accept conduit for direct integration of electric, water and gas.

Versatile Applications

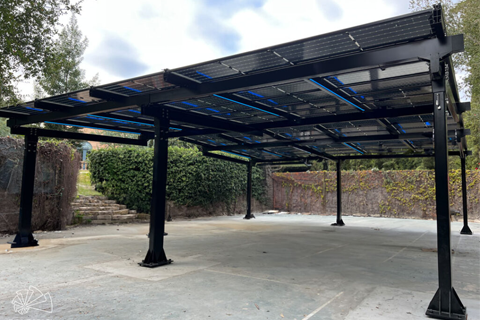

Perfect for pergolas, carports, covered walkways, and outdoor event areas.

Infinity Rack Light Mount Technical Specifications

Specification Value

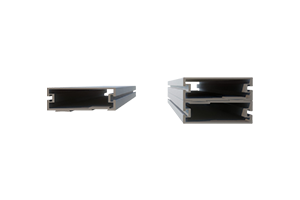

Max Span on Frame Beam12ft
Max Span on Roof Beam12ft
Max Clear Height8ft Pergola, 10ft Carport
Max Structure Length77ft
Max Roofbeam Length18ft 10in
Powdercoat2604
Color OptionsWhite, Beige, Black & Custom
Aluminum Alloy & Temper6005A T6 (Roofbeam), 6063-T6 (All other components)
Max Wind Speed120MPH (Custom configurations available for higher wind speeds)
Max Snow Load/Span20PSF @ 12ft, 40PSF @ 10ft
Wire ManagementFully encapsulated dual wiring chaseways for AC & DC
WarrantyLifetime structural, 10 year gaskets & paint, 6 month lighting

Infinity Rack Light Mount Selection Table

Module Wattage: 585W Tier-1 Bifacial Solar Module / Dimensions: 89.65"x44.65"

Pergola 9'-10"
Model Number
# of Modules
Module Layout
Depth
Width
SQ Ft
Watts
INFRL6-P-3x2
6
3 X 2
11.5ft
15.8ft
181.9ft
3,510
INFRL9-P-3x3
9
3 X 3
11.5ft
23.5ft
270.3ft
5,265
INFRL12-P-3x4
12
3 X 4
11.5ft
31.0ft
356.5ft
7,020
INFRL15-P-3x5
15
3 X 5
11.5ft
38.7ft
444.7ft
8,775
INFRL18-P-3x6
18
3 X 6
11.5ft
46.5ft
534.8ft
10,530
INFRL21-P-3x7
21
3 X 7
11.5ft
54.2ft
622.9ft
12,285
INFRL24-P-3x8
24
3 X 8
11.5ft
62.0ft
713.0ft
14,040
INFRL30-P-3x10
30
3 X 10
11.5ft
77.5ft
891.3ft
17,550
INFRL12-P-4x3
12
4 X 3
15.2ft
23.5ft
356.5ft
7,020
INFRL16-P-4x4
16
4 X 4
15.2ft
31.0ft
470.2ft
9,360
INFRL20-P-4x5
20
4 X 5
15.2ft
38.7ft
586.4ft
11,700
INFRL24-P-4x6
24
4 X 6
15.2ft
46.5ft
705.3ft
14,040
INFRL28-P-4x7
28
4 X 7
15.2ft
54.2ft
821.5ft
16,380
INFRL32-P-4x8
32
4 X 8
15.2ft
62.0ft
940.3ft
18,720
INFRL40-P-4x10
40
4 X 10
15.2ft
77.5ft
1175.4ft
23,400
INFRL10-P-5x2
10
5 X 2
18.8ft
15.8ft
297.6ft
5,850
INFRL15-P-5x3
15
5 X 3
18.8ft
23.5ft
442.6ft
8,775
INFRL20-P-5x4
20
5 X 4
18.8ft
31.0ft
583.8ft
11,700
INFRL25-P-5x5
25
5 X 5
18.8ft
38.7ft
728.2ft
14,625
INFRL30-P-5x6
30
5 X 6
18.8ft
46.5ft
875.8ft
17,550
INFRL35-P-5x7
35
5 X 7
18.8ft
54.2ft
1020.1ft
20,475
INFRL40-P-5x8
40
5 X 8
18.8ft
62.0ft
1167.7ft
23,400
INFRL50-P-5x10
50
5 X 10
18.8ft
77.5ft
1459.6ft
29,250
Carport  9'-12'  Steel Bollard Post Mount
Model Number
# of Modules
Module Layout
Depth
Width
SQ Ft
Watts
INFRL10-C-5x2
10
5 X 2
18.8ft
15.8ft
297.6ft
5,850
INFRL15-C-5x3
15
5 X 3
18.8ft
23.5ft
442.6ft
8,775
INFRL20-C-5x4
20
5 X 4
18.8ft
31.0ft
583.8ft
11,700
INFRL25-C-5x5
25
5 X 5
18.8ft
38.7ft
728.2ft
14,625
INFRL30-C-5x6
30
5 X 6
18.8ft
46.5ft
875.8ft
17,550
INFRL35-C-5x7
35
5 X 7
18.8ft
54.2ft
1020.1ft
20,475
INFRL40-C-5x8
40
5 X 8
18.8ft
62.0ft
1167.7ft
23,400
INFRL50-C-5x10
50
5 X 10
18.8ft
77.5ft
1459.6ft
29,250

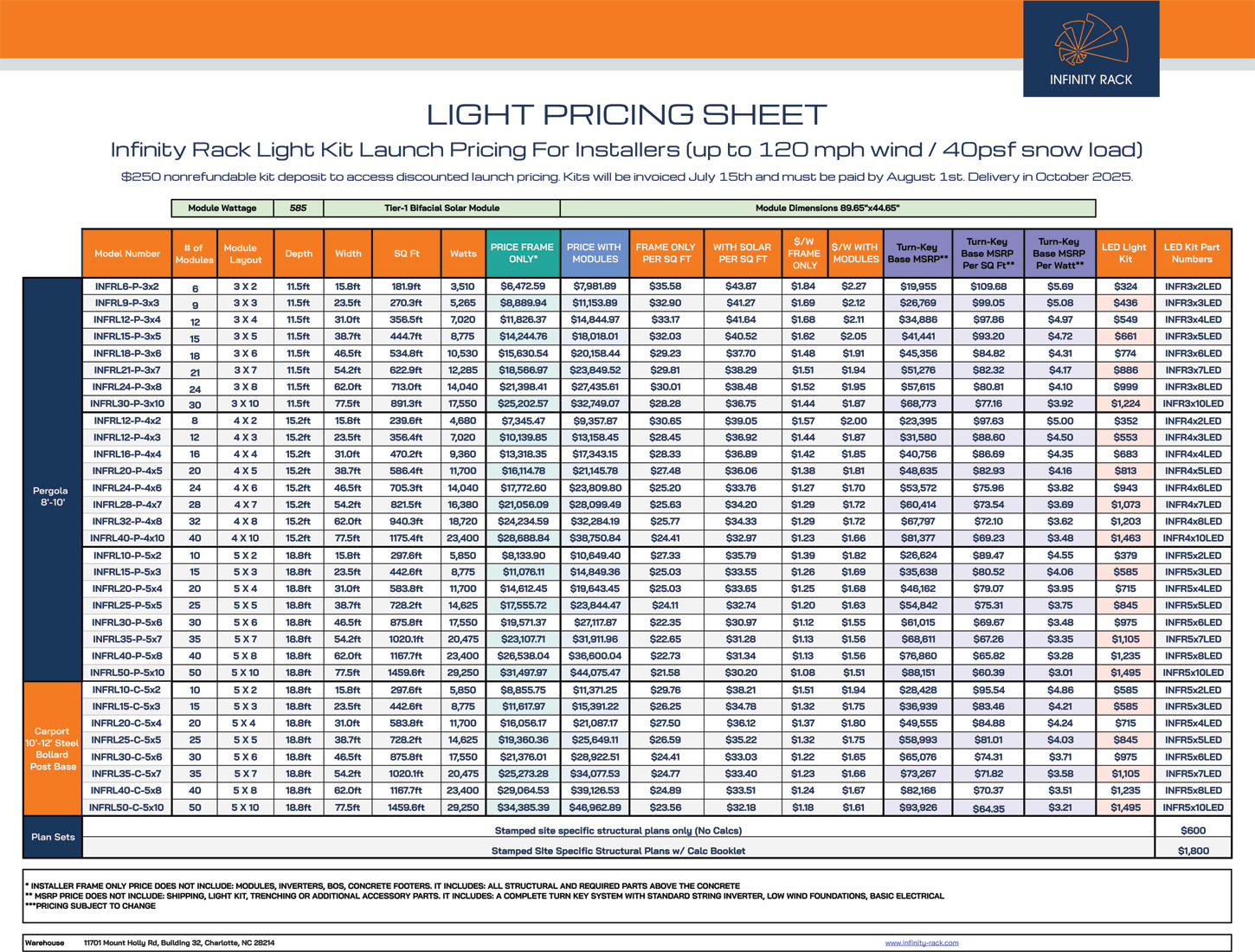

Download Infinity Rack Light Price List
New from Infinity Rack!

Infinity Rack Light Wall Mount Kit

Transform any building wall into a powerful solar energy station with the Infinity Rack Light Wall Mount Kit. This sleek aluminum mounting system allows you to install your Infinity Rack solar structure directly onto homes, apartments, condominiums, and affordable housing complexes—making it the perfect solution for California's new solar construction mandate for multi-tenant housing.

Built to withstand extreme weather conditions with ratings up to 120 mph wind and 40psf snow load, this robust wall mount system offers flexible configurations from 3.5kW to 23.4kW to meet diverse energy needs. The kit includes stamped site-specific structural plans and all necessary mounting hardware, ensuring code compliance and professional installation standards. the Infinity Rack Light Wall Mount Kit delivers clean, reliable solar power while maximizing limited space in urban environments. Launch pricing available for installers with delivery scheduled for October 2025.

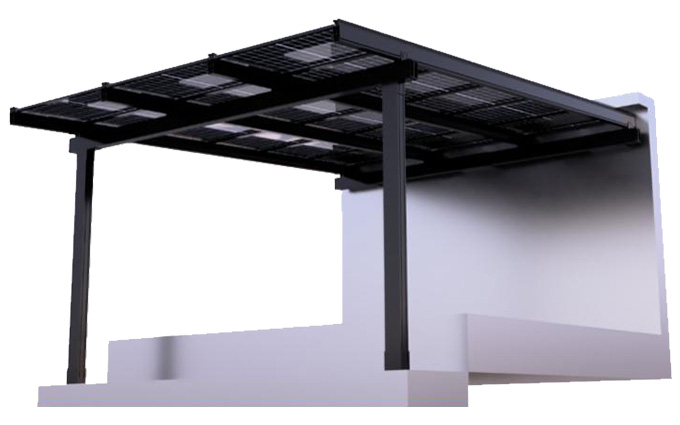

Infinity Rack Wall Mount Structures

Infinity Rack Light Wall Mount Kit Selection Table

Module Wattage: 585W Tier-1 Bifacial Solar Module / Dimensions: 89.65"x44.65"

Pergola 9'-10"
Model Number
# of Modules
Module Layout
Depth
Width
SQ Ft
Watts
INFRL6-P-3x2
6
3 X 2
11.5ft
15.8ft
181.9ft
3,510
INFRL9-P-3x3
9
3 X 3
11.5ft
23.5ft
270.3ft
5,265
INFRL12-P-3x4
12
3 X 4
11.5ft
31.0ft
356.5ft
7,020
INFRL15-P-3x5
15
3 X 5
11.5ft
38.7ft
444.7ft
8,775
INFRL18-P-3x6
18
3 X 6
11.5ft
46.5ft
534.8ft
10,530
INFRL21-P-3x7
21
3 X 7
11.5ft
54.2ft
622.9ft
12,285
INFRL24-P-3x8
24
3 X 8
11.5ft
62.0ft
713.0ft
14,040
INFRL30-P-3x10
30
3 X 10
11.5ft
77.5ft
891.3ft
17,550
INFRL12-P-4x3
12
4 X 3
15.2ft
23.5ft
356.5ft
7,020
INFRL16-P-4x4
16
4 X 4
15.2ft
31.0ft
470.2ft
9,360
INFRL20-P-4x5
20
4 X 5
15.2ft
38.7ft
586.4ft
11,700
INFRL24-P-4x6
24
4 X 6
15.2ft
46.5ft
705.3ft
14,040
INFRL28-P-4x7
28
4 X 7
15.2ft
54.2ft
821.5ft
16,380
INFRL32-P-4x8
32
4 X 8
15.2ft
62.0ft
940.3ft
18,720
INFRL40-P-4x10
40
4 X 10
15.2ft
77.5ft
1175.4ft
23,400

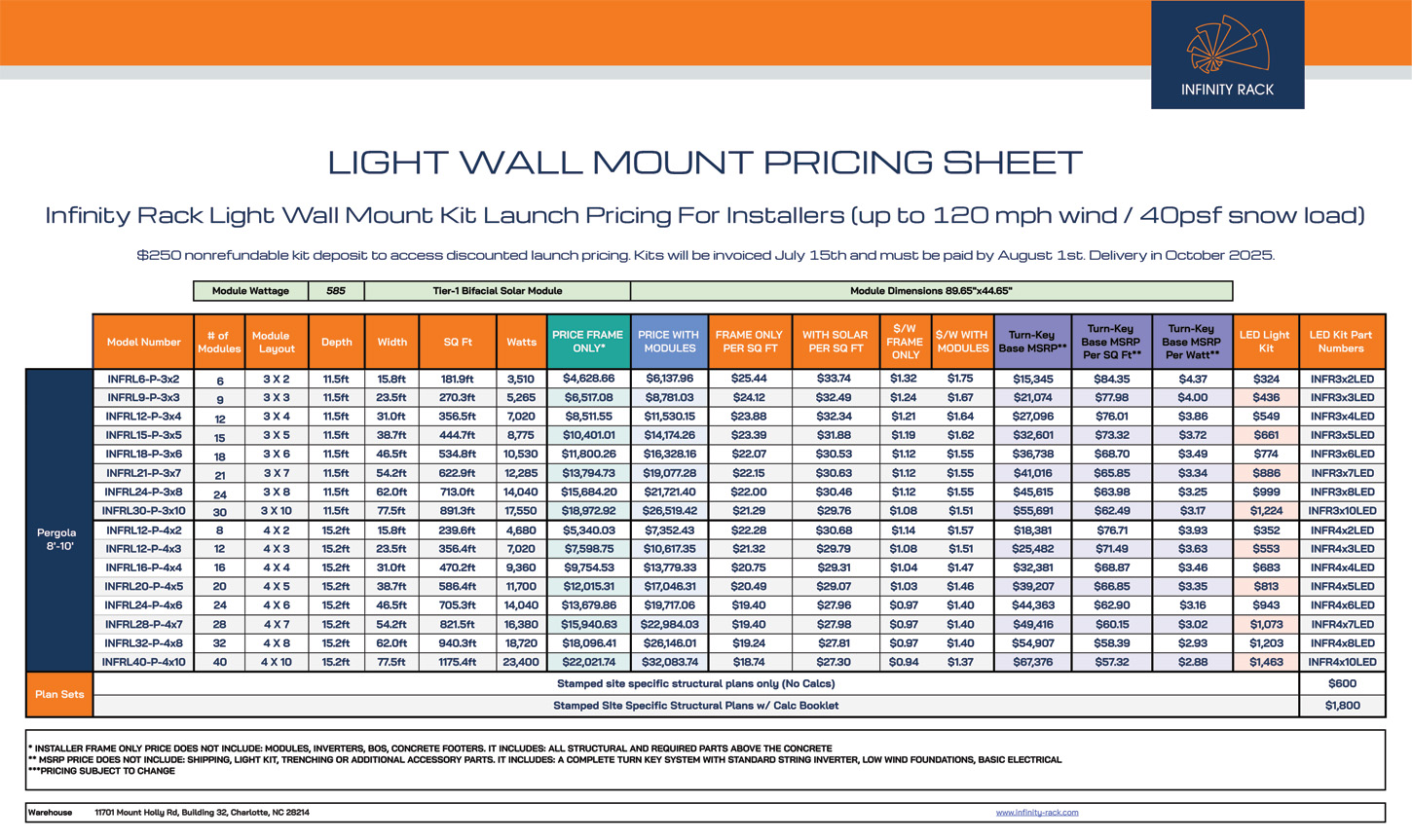

Download Infinity Rack Light w/ Wall Mount Price List
Infinity Rack UL 2703 Certified

UL 2703 bonding and mechanical load certification

Infinity Rack has earned its UL 2703 certification for bonding and mechanical load certification. These racking systems are tested rigorously to ensure safety and durability.

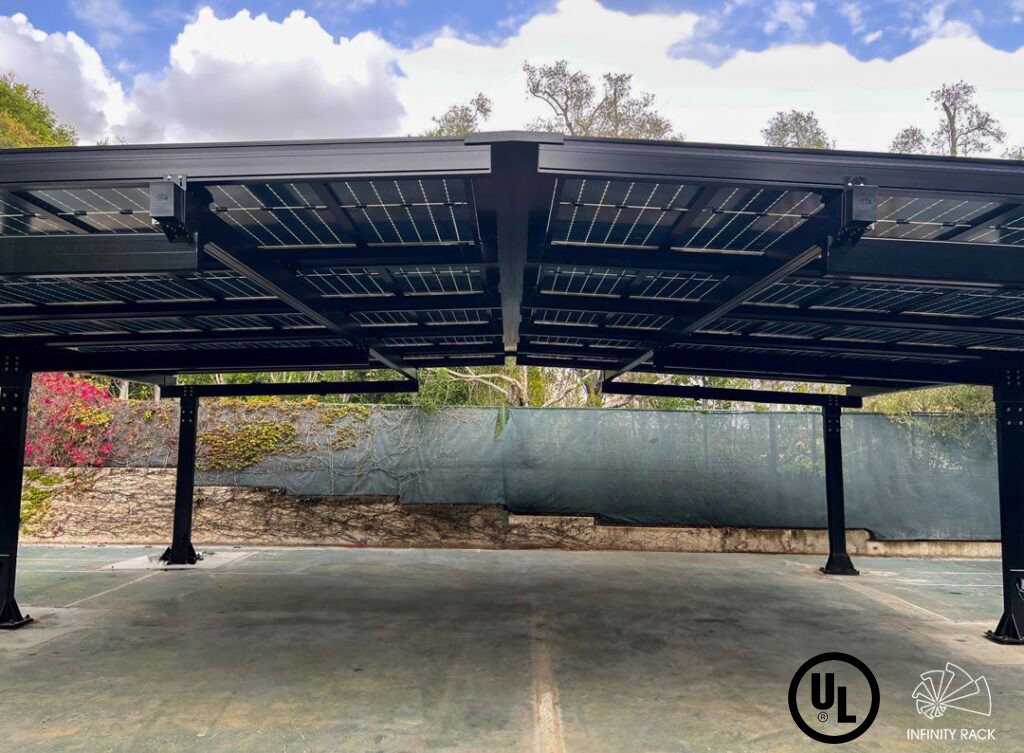

Infinity Rack Light UL Listed
SES Logo

Different solar panels, PV mounts, storage, & inverter systems, available at low wholesale prices!

Contact Us Today for sales, questions and expert reviews for the Infinity Rack Light System.

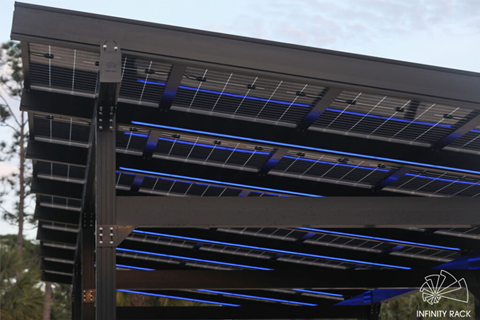

Residential Carport Systems Catalog
