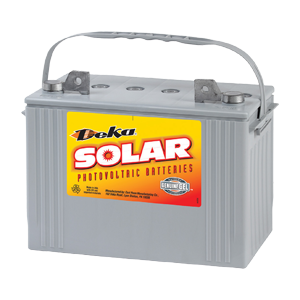

Deka Sealed Gel Cell And AGM Batteries For Off-Grid Solar PV Applications.
Time-tested Deka Solar Gel & AGM batteries outlast the others.
The East-Penn Deka Solar line of sealed gel & AGM batteries are field-proven with tens of thousands of solar installations all over the world. Deka Solar batteries are valve-regulated, gel electrolyte or absorbed glass mat batteries designed to offer reliable power for frequent deep cycle solar power applications where minimum maintenance is required.
Contact us toll-free: (877) 297-0014 for wholesale prices and complete systems using these batteries. OEM, Distributor, System Integrator, Government, VAR, Dealer, Contractor, MWBE, International, and Reseller discounts available.
Remote Residential - Communications - Water Pumping - Cathodic Protection - Remote Monitoring - Vaccine Refrigeration - Tower Obstruction Lighting - SCADA - RTU - Wind Power LED Beacons - Wind Generation - DC UPS - and Much More!
Click here for complete solar systems using these batteries.
Both Deka Solar Gel & AGM batteries are built to the same rigorous standards.
Contact us toll-free: (877) 297-0014 for wholesale prices and complete systems using these batteries. OEM, Distributor, System Integrator, Government, VAR, Dealer, Contractor, MWBE, International, and Reseller discounts available.
| GEL BATTERY MODEL # |
VOLTS | SHORT CIRCUIT CURRENT |
TERMINAL TORQUE MAX. IN/LB (NM) |
PERFORMANCE (AH)* TO 1.75 VPC *Ratings after 15 Cycles |
WEIGHT | DIMENSIONS - in. | |||
|---|---|---|---|---|---|---|---|---|---|
| 20 HR | 100 HR | lb (kg) | L | W | H | ||||
| 8G27-HFL-DEKA | 12V | 2312 | 40 (4.5) | 88.0 | 99.0 | 62.0 (28.0) | 12.83'' | 6.56'' | 9.33'' |
| 8G27-HUT-DEKA | 12V | 2312 | 50 (5.7) | 88.0 | 99.0 | 62.0 (28.0) | 12.83" | 6.56" | 9.24" |
| 8G31-HST-DEKA | 12V | 2802 | 60 (6.8) | 97.6 | 108 | 68.5 (31.0) | 12.93" | 6.74" | 9.33" |
| 8G30-HFL-DEKA | 12V | 2730 | 40 (4.5) | 97.6 | 108 | 68.5 (31.0) | 12.93'' | 6.74" | 9.75" |
| 8G4D-HAP-DEKA | 12V | 5530 | 50 (5.7) | 183.0 | 210.0 | 127.5 (58.0) | 20.77" | 8.44" | 9.89" |
| 8G4D-HEI-DEKA | 12V | 5530 | 100 (11.3) | 183.0 | 210.0 | 127.5 (58.0) | 20.77" | 8.44" | 8.96" |
| 8G4D-HLT-DEKA | 12V | 5530 | 50 (5.7) | 183.0 | 210.0 | 127.5 (58.0) | 20.77" | 8.44" | 10.85" |
| 8G8D-HAP-DEKA | 12V | 5915 | 50 (5.7) | 225.0 | 265.0 | 157.0 (71.0) | 20.44" | 10.97" | 9.98" |
| 8G8D-HEI-DEKA | 12V | 5915 | 100 (11.3) | 225.0 | 265.0 | 157.0 (71.0) | 20.44" | 10.97" | 9.00" |
| 8G8D-HLT-DEKA | 12V | 5915 | 50 (5.7) | 225.0 | 265.0 | 157.0 (71.0) | 20.44" | 10.97" | 11.25" |
| GEL BATTERY MODEL # |
FOOT NOTE | VOLTS | AMPERE HOUR CAPACITY 77°F (25° C) | WEIGHT | DIMENSIONS - in. (mm) | |||
|---|---|---|---|---|---|---|---|---|
| 20 HR | 100 HR | lb (kg) | L | W | H | |||
| 8GU1 | 38,39,Y | 12 | 31.6 | 36.0 | 23.4 (10.6) | 7.75 (197) | 5.125 (130) | 7.25 (184) |
| 8G22NF | 38,39,G | 12 | 51.0 | 58.0 | 37 (16.8) | 9.375 (238) | 5.5 (140) | 9.25 (235) |
| 8G27 Group 27 |
17,38,39,B | 12 | 88.0 | 99.0 | 63 (28.6) | 12.83 (326) | 6.56 (167) | 9.25 (235) |
| 8G30H | 17,38,39,B | 12 | 97.6 | 108 | 70 (31.8) | 12.93 (329) | 6.75 (171) | 9.76 (248) |
| 8G31 Group 31 |
17,38,39,X | 12 | 97.6 | 108 | 70 (31.8) | 12.93 (329) | 6.75 (171) | 9.34 (237) |
| 8G4D | 17,38,39,T | 12 | 183 | 210 | 127 (57.6) | 20.73 (527) | 8.44 (214) | 10.82 (275) |
| 8G8D | 17,38,39,T | 12 | 225 | 265 | 157 (71.2) | 21.03 (534) | 11.00 (279) | 10.82 (275) |
| AGM BATTERY TYPE |
FOOT NOTE | VOLTS | AMPERE HOUR CAPACITY 77°F (25° C) | WEIGHT | DIMENSIONS - in. (mm) | |||
|---|---|---|---|---|---|---|---|---|
| 20 HR | 100 HR | lb (kg) | L | W | H | |||
| 8AU1H | 17,38,39,Y | 12 | 32.0 | 37.0 | 23.0 (10) | 8.31 (211) | 5.18 (132) | 7.22 (183) |
| 8A22NF | 17,38,39,G | 12 | 55.0 | 63.0 | 37.0 (17) | 9.72 (247) | 5.47 (139) | 9.24 (235) |
| 8A27 Group 27 |
17,38,39,B | 12 | 92.0 | 100.0 | 61.5 (28) | 12.83 (326) | 6.56 (167) | 9.30 (236) |
| 8A31DT Group 31 |
17,38,39,X,SAE | 12 | 105.0 | 110.0 | 69.0 (31) | 12.94 (329) | 6.75 (171) | 9.38 (238) |
| 8A4D | 17,38,39,T | 12 | 198.0 | 210.0 | 135.5 (61) | 20.73 (527) | 8.44 (214) | 10.82 (275) |
| 8A8D | 17,38,39,T | 12 | 245.0 | 250.0 | 163.0 (74) | 21.03 (534) | 11.00 (279) | 10.82 (275) |
ALL RATINGS ARE AFTER 15 CYCLES AND
CONFORM TO B.C.I. SPECIFICATIONS
IMPORTANT CHARGING INSTRUCTIONS: WARRANTY VOID
IF OPENED OR IMPROPERLY CHARGED. Do not install in a
sealed container. Constant under or overcharging will damage
any battery and shorten its life! Use a good constant potential,
voltage-regulated charger. The open circuit voltage of a fully
charged 12-volt battery is 12.8V at 68°F (20°C).
Batteries are manufactured in polypropylene cases and covers.
Footnotes:
17 - Includes handle
38 - "Non-spillable" defined by DOT
(Department of Transportation) definitions
39 - "Non-spillable" defined by ICAO
(International Airline Transport Association)
definitions and IATA (International
Commercial Airline Organization)
Terminal Codes:
B - Flag Terminal w/ 3/8" diameter hole
G - Flag Terminal w/ 5-16" diameter hole
T - "L" Terminal w/ 3/8" diameter hole
X - 3/8-16 stainless steel threaded post
Y - Small "L" terminal w/ 5/16" diameter hole
Gel electrolyte and Absorbed Glass Mat batteries are valve regulated lead-acid.
In a gel battery, the electrolyte does not flow like a normal liquid. The electrolyte has the consistency and appearance of petroleum jelly.
In an AGM battery, highly porous microfiber separators completely absorb and trap the electrolyte. Oxygen formed from the positive plates during charging passes horizontally through the separator pores to the negative plates, where it reacts with hydrogen and changes back to water to replenish the electrolyte.
After many reviews, we have found both Gel and AGM perform well in cold and hot climates. In cold climates AGM capacity loss is minimal and will have a slightly higher voltage at lower temperatures. In hot weather climates, gel batteries tend to outlast AGM batteries due to the nature of the Deka gel electrolyte formula. Both are considered "non-spillable". The "acid-starved" condition of Gel and AGM batteries protects the plates during heavy deep-discharges, giving more protection to the plate. Because of this inherent protection, AGM and Gel batteries are better suited for super-deep discharge applications than traditional lead-acid batteries. Deka Solar Batteries fit these conditions.
